38.21.0.024.8240 Finder Control Relays

38.21.0.024.8240 on Powermatic Associates
Finder

Part#:38.21.0.024.8240

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

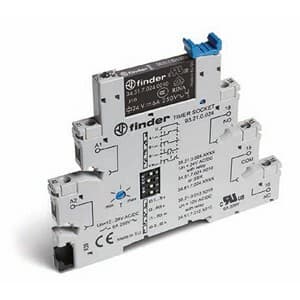

Finder 38.21.0.024.8240 is a Solid State Relay (SSR) designed with a single Normally Open (NO) circuit and utilizes a box-clamp connection type. It is rated for a current of 2A at 240Vac in AC-1 operation and supports a control voltage of 24Vdc. This SSR is designed for single pole single throw - normally open (SPST-NO) operation, with a rated voltage for AC at 240Vac and for DC at 24Vdc. It operates efficiently within an ambient air temperature range of -40 to +55°C and is suitable for storage in the same temperature conditions. The relay features a compact design with dimensions including a pole width of 6.2 mm. It offers protection with an IP20 rating and is equipped for zero-cross switching capability, suitable for AC switching. The 38.21.0.024.8240 is designed for easy installation on a DIN rail or through plug-in mounting, adhering to the EN61984 communication protocol for digital outputs.

Product Details

  • Main function
    Solid State Relay (SSR)
  • Control Voltage (DC)
    24Vdc
  • Compliant with standard(s)
    cURus EAC CE EN 60664-1 EN 60715 EN 61810-1 EN 61984
  • Rated current
    2A (240Vac; AC-1)
  • Rated voltage (AC)
    240Vac
  • Number of Normally Open (NO) circuits
    1 NO Pole(s)
  • Mounting location
    EN61984
  • Poles
    1 Pole(s)
  • Ambient air temperature for operation
    -40...+55 °C
  • Net Width (mm)
    6.2 mm
  • Primary brand
    Finder
  • Connection type
    Box-clamp
  • Mounting mode
    DIN rail Plug-in
  • Degree of protection
    IP20
  • Product series / family name
    38 series
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Contacts type
    1NO / SPST-NO (Single Pole Single Throw - Normally Open)
  • Technology used in component
    Zero-cross switching capability (for AC switching)
  • Contents
    (Socket) 93.21.0.024 (Relay) 34.81.7.024.8240

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
