9264 Festo Actuator Accessories

9264 on Powermatic Associates
Festo

Part#:9264

Alt. Part#:SGS-M20X1,5

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

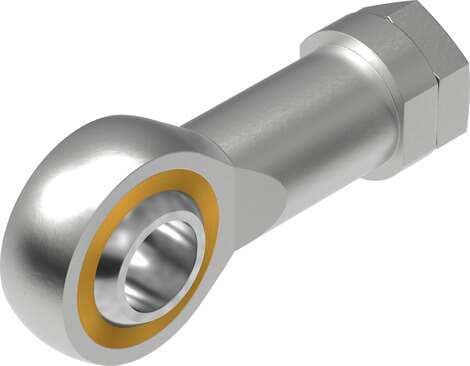

rod eye SGS-M20X1,5 With hexagonal nut, for spherical swivelling cylinder mounting (piston rod side) as per DIN ISO 8139. Size: M20x1,5, Based on the standard: ISO 12240-4, Corrosion resistance classification CRC: 1 - Low corrosion stress, Ambient tempera

Product Details

  • Size
    M20x1.5
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Nut material
    Steel, galvanized
  • Based on norm
    ISO 12240-4
  • Housing material
    Steel, galvanized
  • Inner raceway material
    Steel
  • Note on materials
    RoHS-compliant
  • Type code
    SGS
  • Product weight
    468 g
  • Material of outer ring
    Brass
  • Ambient temperature
    -40 °C ... 150 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

9264 Related Documents

9264 DataSheet.pdf
