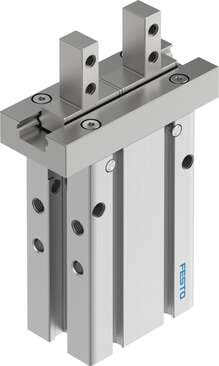

8116813 Festo Pneumatic Grippers

Product Details

• Operating pressure
  1 bar ... 8 bar
• Rotational symmetry
  ≤ 0.2 mm
• Gripper function
  Parallel
• Symbol
  00997348
• Max. operating frequency of pneumatic gripper
  3 Hz
• Mass moment of inertia
  0.215 kgcm²
• Max. mass per external gripper finger
  360 g
• Product weight
  126 g
• Size
  16
• Max. gripper jaw angular play ax, ay
  0 deg
• Mounting position
  Any
• Number of gripper jaws
  2
• Total gripping force at 6 bar, opening
  101 N
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Gripping force per gripper jaw at 6 bar, opening
  50.5 N
• Maximum torque on gripper jaw, My static
  0.68 Nm
• Gripper jaw material
  High-alloy stainless steel
• Mode of operation
  Single-acting Closed
• Min. opening time at 6 bar
  50 ms
• Maximum force on gripper jaw Fz, static
  49 N
Type of mounting
Optionally: With internal thread and dowel pin
Housing material
Aluminum, anodized
Stroke per gripper jaw
6 mm
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Type code
DHPC
Design
Connection direction at side Positively driven motion sequence
Position sensing
For proximity sensor
Min. closing time at 6 bar
52 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-10 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
0.34 Nm
Pneumatic connection
M3
Max. interchangeability
0.2 mm
Max. gripper jaw backlash Sz
0 mm
Guide
Ball guide
Corrosion resistance class (CRC)
0 - No corrosion stress
Maximum torque on gripper jaw, Mx static
0.34 Nm
Note on materials
Free of copper and PTFE RoHS-compliant

Related documents 8116813 Specs
