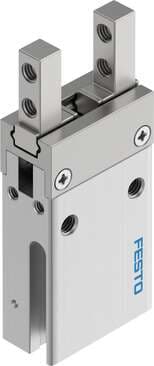

8116738 Festo Pneumatic Grippers

Product Details

• Gripper function
  Parallel
• Max. interchangeability
  0.2 mm
• Rotational symmetry
  ≤ 0.2 mm
• Design
  Connection direction downwards Positively driven motion sequence
• Max. operating frequency of pneumatic gripper
  3 Hz
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Gripping force per gripper jaw at 6 bar, closing
  5.5 N
• Type code
  DHPC
• Total gripping force at 6 bar, opening
  14.6 N
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Maximum torque on gripper jaw, Mx static
  0.02 Nm
• Type of mounting
  Optionally: Direct fastening via thread
• Size
  6
• Max. gripper jaw angular play ax, ay
  0 deg
• Mounting position
  Any
• Guide
  Ball guide
• Total gripping force at 6 bar, closing
  11 N
• Gripping force per gripper jaw at 6 bar, opening
  7.3 N
• Maximum torque on gripper jaw, My static
  0.04 Nm
• Housing material
  Aluminum, anodized
Stroke per gripper jaw
2 mm
Number of gripper jaws
2
Symbol
00991894
Min. opening time at 6 bar
9 ms
Ambient temperature
-10 °C ... 60 °C
Mass moment of inertia
0.011 kgcm²
Pneumatic connection
M3
Gripper jaw material
High-alloy stainless steel
Operating pressure
1.5 bar ... 8 bar
Max. gripper jaw backlash Sz
0 mm
Mode of operation
Double-acting
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Position sensing
For proximity sensor
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Min. closing time at 6 bar
11 ms
Maximum force on gripper jaw Fz, static
5 N
Max. mass per external gripper finger
18 g
Product weight
25 g
Maximum torque on gripper jaw, Mz static
0.02 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
