Part#:8103809

Alt. Part#:EHPS-16-A-LK

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

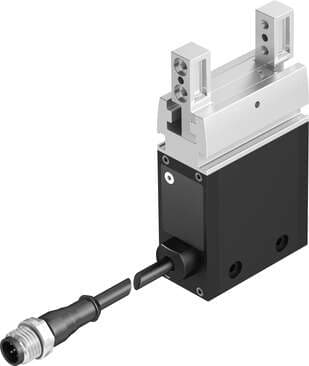

parallel gripper EHPS-16-A-LK Size: 16, Stroke per gripper jaw: 10 mm, Max. replacement accuracy: <: 0,2 mm, Max. angular gripper jaw backlash ax,ay: 0,4 deg, Max. gripper jaw backlash Sz: 0,05 mm

Product Details

  • KC characters
    KC EMC
  • Max. current consumption
    1000 mA
  • Size
    16
  • IO-Link®, process data width OUT
    8 bytes
  • Permissible voltage fluctuations
    +/- 10 %
  • IO-Link®, device ID
    0x000031
  • IO-Link®, port class
    Device B
  • IO-Link®, SIO mode support
    No
  • Max. gripper jaw angular play ax, ay
    0.4 deg
  • Number of gripper jaws
    2
  • Design
    Worm gear Electric gripper
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Ambient temperature
    5 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Housing material
    Wrought aluminum alloy, anodized
  • Max. cycle rate
    1.1 Hz
  • Conforms to standard
    IEC 61010-1
  • IO-Link®, minimum cycle time
    5 ms
  • Stroke per gripper jaw
    10 mm
  • Pneumatic gripper repetition accuracy
    ≤ 0.03 mm
  • Guide
    Sliding guide
  • Ready status indication
    LED
  • Noise level
    ≤ 70 dB(A)
  • Mass moment of inertia
    0.78 kgcm²
  • Electrical connection
    5-pin M12x1
  • Certification
    RCM compliance mark
  • IO-Link®, process data content IN
    16 bit (ActualPosition) 16 bit (StatusWord)
  • IO-Link®, number of ports
    Device 1
  • IO-Link®, data memory required
    < 500 byte
  • Rotational symmetry
    ≤ 0.2 mm
  • Mounting position
    Any
  • Motor type
    DC servo motor
  • Degree of protection
    IP40
  • Maximum force on gripper jaw Fz, static
    200 N
  • Maximum torque on gripper jaw, Mz static
    7 Nm
  • Gripper jaw material
    High-alloy stainless steel
  • IO-Link®, process data content OUT
    16 bit (ControlWord) 8 bit (WorkpieceNo)
  • IO-Link®, process data width IN
    6 bytes
  • IO-Link®, communication mode
    COM3 (230.4 kBd)
  • Max. interchangeability
    ≤ 0.2 mm
  • Gripper function
    Parallel
  • Position sensing
    With Hall sensor Via IO-Link interface
  • CE marking (see declaration of conformity)
    As per EU EMC directive As per EU RoHS directive
  • Maximum torque on gripper jaw, My static
    4.4 Nm
  • Product weight
    296 g
  • Max. mass per external gripper finger
    100 g
  • IO-Link®, protocol version
    Device V 1.1
  • Protocol
    IO-Link®
  • Max. gripper jaw backlash Sz
    0.05 mm
  • Type code
    EHPS
  • Symbol
    00992258
  • Nominal operating voltage DC
    24 V
  • Maximum torque on gripper jaw, Mx static
    7 Nm
  • Relubrication interval for guidance elements
    2 MioCyc
  • Type of mounting
    Optionally: Via through-hole and centering sleeve

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
