8099430 Festo Couplings

8099430 on Powermatic Associates
Festo

Part#:8099430

Alt. Part#:EAMC-56-58-19-22

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

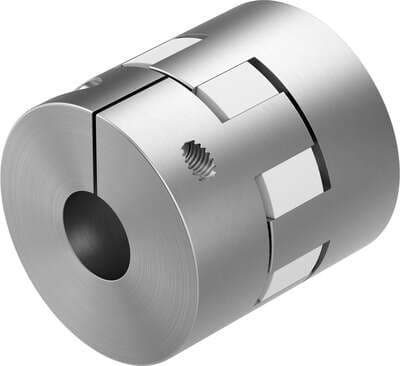

coupling EAMC-56-58-19-22 Holder diameter 1: 19 mm, Holder diameter 2: 22 mm, Size: 56, Nominal length: 58 mm, Assembly position: Any

Product Details

  • Diameter of holder 2
    22 mm
  • Max. rotational speed
    5500 1/min
  • Mass moment of inertia
    128 kgmm²
  • Product weight
    283 g
  • Nominal length
    58 mm
  • Ambient temperature
    -25 °C ... 60 °C
  • Diameter of holder 1
    19 mm
  • Type code
    EAMC
  • Relative air humidity
    0 - 95 %
  • Transferable torque
    60 Nm
  • Mounting position
    Any
  • Note on materials
    RoHS-compliant
  • Size
    56
  • Storage temperature
    -25 °C ... 60 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8099430 Related Documents

8099430 DataSheet.pdf

Manufacturer warranty

8099430 Festo
