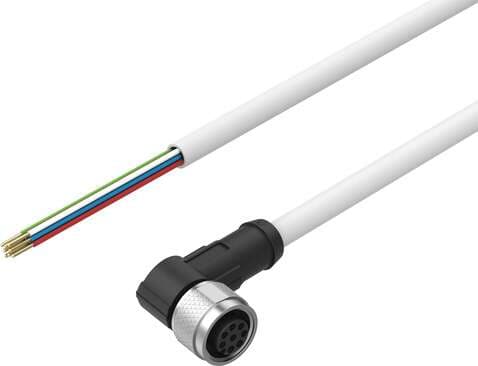

8094479 Festo Cable Assemblies

Product Details

• Shield
  no
• Certification
  c UL us - Listed (OL)
• Electrical connection 1, occupied pins/wires
  8
• Type code
  NEBC
• Electrical connection 1, design
  Round
• Electrical connection 1, function
  Field device end
• Electrical connection 2, function
  Control side
• Electrical connection 2, connection technology
  Open end
• Surge resistance
  0.8 kV
• Bending radius, fixed cable installation
  ≥ 30 mm
• Degree of protection
  IP65 IP67
• Ambient temperature with flexible cable installation
  -25 °C ... 90 °C
• Color cable sheath
  silver-grey
• Certificate issuing authority
  UL E474609
• Product weight
  729 g
• Electrical connection 1, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Electrical connection for input 1, connection pattern
  00992265
• Electrical connection 2, number of pins/wires
  8
• Cable characteristic
  Suitable for energy chains
• Bending radius, flexible cable installation
  ≥ 30 mm
Wire ends
Stripped
Material of cable sheath
TPE-U(PUR)
Insulating sheath material
PP
Based on norm
EN 61076-2-101
Electrical connection 1, connection type
Socket
Electrical connection 1, type of mounting
Screw-type lock
Electrical connection 2, occupied pins/wires
8
Current rating at 40°C
2 A
Cable length
15 m
Cable diameter tolerance
± 0.2 mm
Cable design
8 x 0.25 mm²
Note on materials
RoHS-compliant
Housing colour
Black
Cable designation
Without label holder
Electrical connection 1, cable outlet
Angled
Electrical connection 1, number of pins/wires
8
Operating voltage range AC
0 V ... 30 V
Connector cable test conditions
Test conditions on request
Note on degree of protection
In mounted state
Ambient temperature
-25 °C ... 90 °C
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Material of screw-type lock
Die-cast zinc, nickel-plated
Material of pin contacts
Brass
Electrical connection 2, connection type
Cable
DC operating voltage range
0 V ... 30 V
Cable diameter
6 mm
Nominal conductor cross section
0.25 mm²
CE marking (see declaration of conformity)
As per EU RoHS directive
Contamination level
3
Housing material
TPE-U(PUR)
Seals material
NBR
