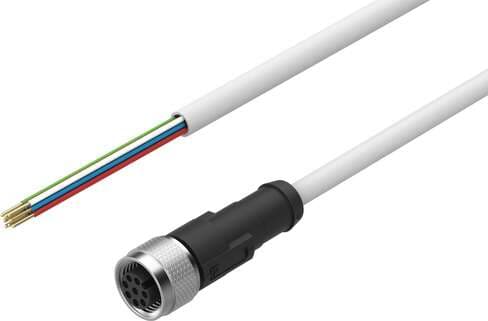

8094476 Festo Cable Assemblies

Product Details

• Certification
  c UL us - Listed (OL)
• Electrical connection 1, design
  Round
• Electrical connection 1, cable outlet
  Angled
• Shield
  no
• Cable designation
  Without label holder
• Electrical connection 1, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Electrical connection 1, type of mounting
  Screw-type lock
• Electrical connection 2, number of pins/wires
  8
• Connector cable test conditions
  Test conditions on request
• Nominal conductor cross section
  0.25 mm²
• Ambient temperature with flexible cable installation
  -25 °C ... 90 °C
• Material of cable sheath
  TPE-U(PUR)
• Color cable sheath
  silver-grey
• Certificate issuing authority
  UL E474609
• Electrical connection 1, function
  Field device end
• Electrical connection 1, number of pins/wires
  8
• Electrical connection 2, connection technology
  Open end
• Electrical connection 2, occupied pins/wires
  8
• Bending radius, fixed cable installation
  ≥ 30 mm
• Cable diameter tolerance
  ± 0.2 mm
CE marking (see declaration of conformity)
As per EU RoHS directive
Housing material
TPE-U(PUR)
Insulating sheath material
PP
Based on norm
EN 61076-2-101
Product weight
105 g
Electrical connection 1, occupied pins/wires
8
Electrical connection 2, connection type
Cable
Surge resistance
0.8 kV
Bending radius, flexible cable installation
≥ 30 mm
Degree of protection
IP65 IP67
Ambient temperature
-25 °C ... 90 °C
Contamination level
3
Material of screw-type lock
Die-cast zinc, nickel-plated
Seals material
NBR
Type code
NEBC
Electrical connection 1, connection type
Socket
Electrical connection for input 1, connection pattern
00992265
DC operating voltage range
0 V ... 30 V
Cable characteristic
Suitable for energy chains
Wire ends
Stripped
Note on degree of protection
In mounted state
Note on materials
RoHS-compliant
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Housing colour
Black
Material of pin contacts
Brass
Electrical connection 2, function
Control side
Operating voltage range AC
0 V ... 30 V
Current rating at 40°C
2 A
Cable length
2 m
Cable diameter
6 mm
Cable design
8 x 0.25 mm²
