8087821 Festo Pneumatic Components

Product Details

• Characteristics of logic input
  Configurable Not galvanically isolated
• Additional functions
  User interface Integrated end-position sensing
• Parameterization interface
  IO-Link® User interface
• Max. cable length
  15 m outputs 20 m for IO-Link® operation
• Logic interface, connection pattern
  00992264
• Size
  32
• Permissible voltage fluctuations
  +/- 15 %
• Logic input specification
  Based on IEC 61131-2, type 1
• Switching logic at outputs
  PNP (positive switching)
• Note on ambient temperature
  Above an ambient temperature of 30°C, the power must be reduced by 2% per K.
• Position sensing
  Motor encoder
• DC nominal voltage
  24 V
• Power supply, number of pins/wires
  4
• Rotor position sensor resolution
  16 bit
• IO-Link®, service data contents IN
  32 bit force 32 bit speed
• IO-Link®, process data content IN
  1 bit (state device) 1 bit (state out)
• IO-Link®, protocol version
  Device V 1.1
• Type of mounting
  With internal thread
• Max. axial force
  450 N
• Input switching logic
  PNP (positive switching)
Characteristics of digital logic outputs
Configurable Not galvanically isolated
Power supply, type of connection
Plug
Number of digital logic outputs 24 V DC
2
Max. current of digital logic outputs
100 mA
IO-Link®, port class
A
IO-Link®, process data content OUT
1 bit (move in) 1 bit (quit error)
IO-Link®, minimum cycle time
1 ms

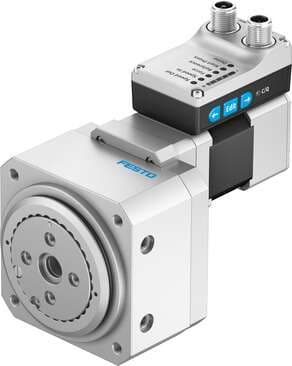

Design
Electromechanical rotary actuator with integrated gearbox
Gear ratio
7:1
Product weight
2304 g
Rotor position sensor measuring principle
Magnetic
Symbol
00997295
Relative air humidity
0 - 85 %
KC characters
KC EMC
Display
LED
Shock resistance
Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Vibration resistance
Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Power supply, connection technology
M12x1, T-coded as per EN 61076-2-111
Logic interface, number of poles/wires
8
Work range of logic input
24 V
IO-Link®, communication mode
COM3 (230.4 kBd)
Angular acceleration
≤ 140 rad/s²
IO-Link®, process data width IN
2 Byte
Max. rotational speed
100 1/min
Max. radial force
550 N
Step angle tolerance
±5%
Rotor position sensor
Absolute encoder, single-turn
Certification
RCM compliance mark
Ambient temperature
0 °C ... 50 °C
Material of flange
Wrought aluminum alloy, anodized
Homing
Fixed stop block positive Fixed stop block, negative
Ready status indication
LED
Logic interface, connection technology
M12x1, A-coded as per EN 61076-2-101
Power supply, connection pattern
00995989
Nominal current
5.3 A
Storage temperature
-20 °C ... 60 °C
IO-Link®, SIO mode support
Yes
IO-Link®, process data width OUT
2 Byte
IO-Link®, data memory required
500 byte
Mounting position
Any
Torsional backlash
0.2 deg
Step angle with full step
1.8 deg
Motor nominal current
5 A
Peak torque
5.6 Nm
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Logic interface, connection type
Plug
Number of digital logic inputs
2
Max. current consumption
5300 mA
IO-Link®, number of ports
1
Protection class
III
IO-Link®, Connection technology
Plug
Type code
ERMS
Rotation angle
90°
Repetition accuracy
±0.1 °
Duty cycle
100%
Interface code, base
E8-55
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Permissible mass moment of inertia
0.0164 kgm²
Insulation protection class
B
Motor type
Stepper motor
Degree of protection
IP40
Housing material
Wrought aluminum alloy, anodized
