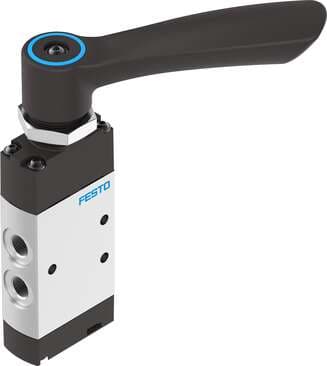

8080952 Festo Mechanical & Manual Valves

Product Details

• Valve function
  5/3, closed
• Operating pressure
  -0.95 bar ... 10 bar
• Standard nominal flow rate
  700 l/min
• Nominal width
  5.2 mm
• Application note
  Operate by hand only
• Symbol
  00995890
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Max. transverse load on actuator
  200 N
• Reset method
  Mechanical spring
• Sealing principle
  Soft
• Flow direction
  Reversible
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Temperature of medium
  -10 °C ... 60 °C
• Pneumatic connection 3
  G1/8
• Pneumatic connection 2
  G1/8
• Lap
  Overlap
• Actuation type
  Manual
• Design
  Piston gate valve
• Exhaust air function
  With flow control option
• Mounting position
  Any
Max. switching frequency
0.5 Hz
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Actuating torque
0.7 Nm
Type of mounting
Optionally: With through-hole
Note on materials
RoHS-compliant
Cover material
PA-reinforced
Max. force on actuator
200 N
Width
20 mm
Type code
VHEF
Type of control
Direct
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 1
G1/8
Pneumatic connection 5
G1/8
Lever material
PA-reinforced
Pneumatic working port
G1/8
Pneumatic connection 4
G1/8
Seals material
NBR
Product weight
265 g
Housing material
Wrought aluminum alloy, anodized
