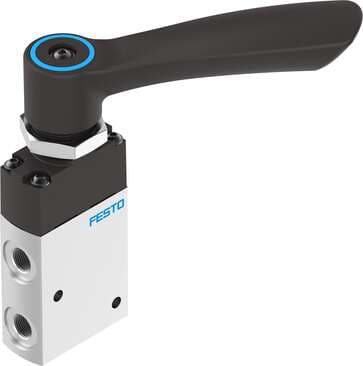

8080940 Festo Mechanical & Manual Valves

Product Details

• Lap
  Zero overlap
• Standard nominal flow rate
  750 l/min
• Type code
  VHEF
• Application note
  Operate by hand only
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Ambient temperature
  -10 °C ... 60 °C
• Pneumatic connection 3
  G1/8
• Valve function
  3/2, bistable
• Unlocking torque
  0.4 Nm
• Exhaust air function
  With flow control option
• Manual override
  Detenting
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Temperature of medium
  -10 °C ... 60 °C
• Type of mounting
  Optionally: With through-hole
• Housing material
  Wrought aluminum alloy, anodized
• Max. force on actuator
  200 N
• Width
  20 mm
• Design
  Plate seat
• Symbol
  00995892
• Actuating torque
  0.7 Nm
Pneumatic connection 2
G1/8
Seals material
NBR
Cover material
PA-reinforced
Actuation type
Manual
Pneumatic working port
G1/8
Sealing principle
Soft
Flow direction
Reversible
Max. switching frequency
0.5 Hz
Pneumatic connection 1
G1/8
Note on materials
RoHS-compliant
Max. transverse load on actuator
200 N
Operating pressure
-0.95 bar ... 10 bar
Nominal width
5.6 mm
Mounting position
Any
Type of control
Direct
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Product weight
236 g
Lever material
PA-reinforced
