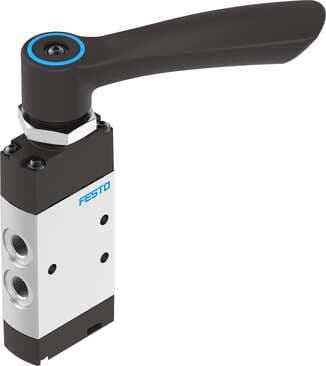

8080935 Festo Mechanical & Manual Valves

Product Details

• Cover material
  PA-reinforced
• Max. transverse load on actuator
  200 N
• Width
  20 mm
• Type code
  VHEF
• Lap
  Overlap
• Standard nominal flow rate
  750 l/min
• Nominal width
  5.2 mm
• Mounting position
  Any
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Actuating torque
  0.6 Nm
• Pneumatic connection 2
  1/8 NPT
• Pneumatic connection 5
  1/8 NPT
• Operating pressure
  -0.95 bar ... 10 bar
• Actuation type
  Manual
• Reset method
  Mechanical spring
• Sealing principle
  Soft
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Product weight
  265 g
• Type of mounting
  Optionally: With through-hole
Note on materials
RoHS-compliant
Pneumatic working port
1/8 NPT
Flow direction
Reversible
Max. switching frequency
0.5 Hz
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 1
1/8 NPT
Pneumatic connection 3
1/8 NPT
Seals material
NBR
Valve function
5/2, monostable
Max. force on actuator
200 N
Design
Piston gate valve
Exhaust air function
With flow control option
Type of control
Direct
Temperature of medium
-10 °C ... 60 °C
Housing material
Wrought aluminum alloy, anodized
Application note
Operate by hand only
Symbol
00995882
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pneumatic connection 4
1/8 NPT
Lever material
PA-reinforced
