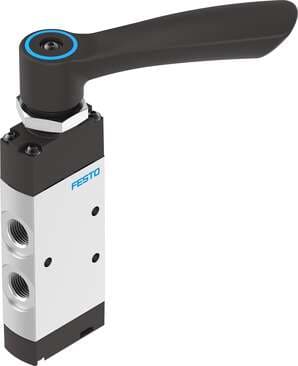

8080934 Festo Mechanical & Manual Valves

Product Details

• Cover material
  PA-reinforced
• Unlocking torque
  0.5 Nm
• Operating pressure
  -0.95 bar ... 10 bar
• Type code
  VHEF
• Application note
  Operate by hand only
• Max. switching frequency
  0.5 Hz
• Product weight
  298 g
• Note on materials
  RoHS-compliant
• Max. force on actuator
  200 N
• Actuation type
  Manual
• Sealing principle
  Soft
• Exhaust air function
  With flow control option
• Symbol
  00995881
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Temperature of medium
  -10 °C ... 60 °C
• Pneumatic connection 2
  1/4 NPT
• Lever material
  PA-reinforced
• Seals material
  NBR
• Valve function
  5/2, bistable
• Max. transverse load on actuator
  200 N
Pneumatic working port
1/4 NPT
Mounting position
Any
Manual override
Detenting
Actuating torque
0.6 Nm
Type of mounting
Optionally: With through-hole
Housing material
Wrought aluminum alloy, anodized
Lap
Overlap
Width
20 mm
Nominal width
7 mm
Flow direction
Reversible
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)
1 - Low corrosion stress
Pneumatic connection 3
1/4 NPT
Standard nominal flow rate
1200 l/min
Design
Piston gate valve
Type of control
Direct
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 1
1/4 NPT
Pneumatic connection 4
1/4 NPT
Pneumatic connection 5
1/4 NPT
