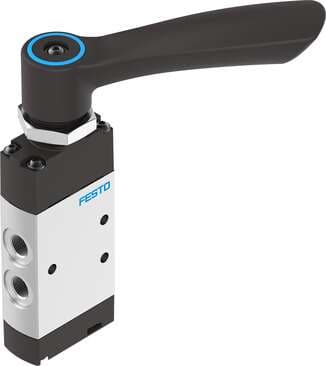

8080933 Festo Mechanical & Manual Valves

Product Details

• Cover material
  PA-reinforced
• Type code
  VHEF
• Mounting position
  Any
• Max. switching frequency
  0.5 Hz
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Actuating torque
  0.6 Nm
• Pneumatic connection 3
  1/8 NPT
• Housing material
  Wrought aluminum alloy, anodized
• Valve function
  5/2, bistable
• Unlocking torque
  0.5 Nm
• Width
  20 mm
• Nominal width
  5.2 mm
• Sealing principle
  Soft
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Product weight
  265 g
• Pneumatic connection 4
  1/8 NPT
• Seals material
  NBR
• Lap
  Overlap
• Operating pressure
  -0.95 bar ... 10 bar
Pneumatic working port
1/8 NPT
Exhaust air function
With flow control option
Flow direction
Reversible
Type of mounting
Optionally: With through-hole
Note on materials
RoHS-compliant
Max. force on actuator
200 N
Standard nominal flow rate
750 l/min
Application note
Operate by hand only
Type of control
Direct
Temperature of medium
-10 °C ... 60 °C
Pneumatic connection 1
1/8 NPT
Pneumatic connection 5
1/8 NPT
Max. transverse load on actuator
200 N
Actuation type
Manual
Design
Piston gate valve
Manual override
Detenting
Symbol
00995881
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 2
1/8 NPT
Lever material
PA-reinforced
