8080931 Festo Mechanical & Manual Valves

8080931 on Powermatic Associates
Festo

Part#:8080931

Manufacturer:Festo

Alt. Part#:VHEF-H-B52-G14

Product Lifecycle:Active

Get a quick Quote!

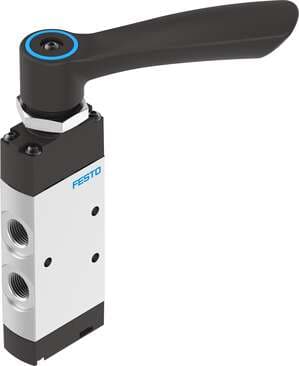

hand lever valve VHEF-H-B52-G14 Valve function: 5/2 bistable, Type of actuation: manual, Width: 20 mm, Standard nominal flow rate: 1200 l/min, Operating pressure MPa: -0,095 - 1 MPa

About the manufacturer: Festo is one of the manufacturers that offers Mechanical & Manual Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8080931 Festo price in the box on the right side or send a quick quote.

Product Details

  • Lap
    Overlap
  • Actuation type
    Manual
  • Nominal width
    7 mm
  • Manual override
    Detenting
  • Temperature of medium
    -10 °C ... 60 °C
  • Product weight
    298 g
  • Pneumatic connection 4
    G1/4
  • Housing material
    Wrought aluminum alloy, anodized
  • Cover material
    PA-reinforced
  • Unlocking torque
    0.5 Nm
  • Design
    Piston gate valve
  • Sealing principle
    Soft
  • Max. switching frequency
    0.5 Hz
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Type of mounting
    Optionally: With through-hole
  • Pneumatic connection 5
    G1/4
  • Note on materials
    RoHS-compliant
  • Valve function
    5/2, bistable
  • Max. transverse load on actuator
    200 N
  • Standard nominal flow rate
    1200 l/min
  • Type code
    VHEF
  • Application note
    Operate by hand only
  • Type of control
    Direct
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G1/4
  • Pneumatic connection 3
    G1/4
  • Seals material
    NBR
  • Max. force on actuator
    200 N
  • Pneumatic working port
    G1/4
  • Exhaust air function
    With flow control option
  • Flow direction
    Reversible
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Actuating torque
    0.6 Nm
  • Pneumatic connection 2
    G¼
  • Operating pressure
    -0.95 bar ... 10 bar
  • Width
    20 mm
  • Mounting position
    Any
  • Symbol
    00995881
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Lever material
    PA-reinforced

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
