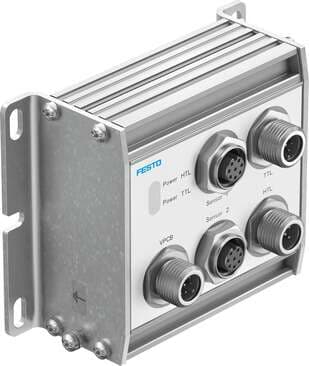

8071781 Festo Pneumatic Components

Product Details

• Signal range
  HTL signal: high: min. 18 V; low: max. 2 V TTL signal: high: min. 2.4 V, low: max. 0.4 V
• Pneumatic valve electrical connection, connection type
  Plug
• Electrical sensor connection, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Electrical connection output 2, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Current consumption with load-free outputs
  50 mA
• Diagnostic function
  Indication via LED
• Duty cycle
  100%
• Electrical connection output, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Note on degree of protection
  In mounted state
• Electrical sensor connection, connection type
  2x socket
• Reverse polarity protection
  yes
• Electrical output connection, number of pins/wires
  8
• DC operating voltage range
  20.4 V ... 30 V
• Nominal operating voltage DC
  24 V
• Certification
  RCM compliance mark
• Type code
  CASB
• KC characters
  KC EMC
• Electrical connection output 2, connection type
  Plug
• Electrical connection output, function
  TTL
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Sensor electrical connection, number of pins/wires
8
Mounting position
Any
Corrosion resistance class (CRC)
1 - Low corrosion stress
Product weight
350 g
Application note
The product is suitable for industrial purposes only. Radio interference suppression measures may be required in residential areas.
Electrical connection output, connection type
Plug
Electrical connection output 2, function
HTL
Output frequency
TTL signal: max. 7200 Hz HTL signal: max. 450 Hz
Current rating per output
50 mA
Residual ripple
5 %
Degree of protection
IP65
Type of mounting
With through-hole for M4 screw
Seals material
FPM NBR
Protection against direct and indirect contact
PELV
Electrical pneumatic valve connection, connection technology
M12x1 A-coded as per EN 61076-2-101
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical pneumatic valve connection, number of pins/wires
8
Electrical output connection 2, number of pins/wires
5
CE marking (see declaration of conformity)
As per EU EMC directive
Note on materials
RoHS-compliant
Max. electrical power consumption
6 W
Ambient temperature
-5 °C ... 50 °C
Housing material
Wrought aluminum alloy, anodized
