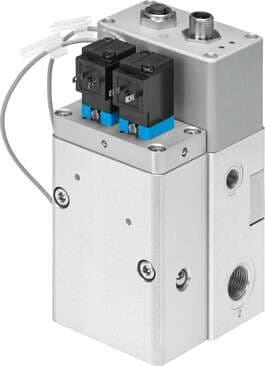

8071579 Festo Pneumatic Components

Product Details

• Electrical pneumatic valve connection, connection technology
  Connection diagram form C as per industrial standard, 9.4 mm
• Max. cable length
  30 m
• Fieldbus interface, connection type
  Plug
• Typical lowering speed
  15 mm/s
• Type of control
  Direct
• Sealing principle
  Hard
• Ambient temperature
  0 °C ... 50 °C
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Note on materials
  RoHS-compliant
• Reverse polarity protection
  for operating voltage
• Max. electrical power consumption
  33.5 W
• Pneumatic connection 2
  G3/8
• Housing material
  Wrought aluminum alloy, anodized
• Valve function
  3-way proportional pressure control valve
• Electrical connection for actuator, connection type
  Socket
• Fieldbus interface, connection technology
  M12x1, A-coded as per EN 61076-2-101
• Electrical actuator connection, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Fieldbus interface, number of poles/wires
  5
• Electrical actuator connection, number of pins/wires
  8
• Type code
  VPCB
Mounting position
Any
Nominal width
6 mm
Degree of protection
IP65
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Nominal operating voltage DC
24 V
Max. current consumption
1.2 A
Pneumatic connection 1
G3/8
Current consumption
120 mA
Application note
The product is suitable for industrial purposes only. Radio interference suppression measures may be required in residential areas.
Fieldbus interface, protocol
CAN bus with Festo protocol
Note on lowering speed
When manual exhausting is actuated with cylinder diameter 80 mm, transmission ratio 1:1 and 100 kg load.
Standard nominal flow rate
725 l/min
Reset method
Magnetic spring
Display type
LED
Operating medium
Compressed air as per ISO 8573-1:2010 [6:4:4]
Certification
RCM compliance mark
Duty cycle
100%
Product weight
1550 g
Design
Piston gate valve with integrated pressure sensors
Flow direction
Non-reversible
Short-circuit protection
yes
Note on degree of protection
In mounted state
Corrosion resistance class (CRC)
1 - Low corrosion stress
DC operating voltage range
21.6 V ... 26.4 V
Type of mounting
Direct fastening via M5 thread
Seals material
FPM NBR
Pneumatic connection for control component
G1/8
Pneumatic valve electrical connection, connection type
Plug
KC characters
KC EMC
Electrical pneumatic valve connection, number of pins/wires
2
Operating pressure
4 bar ... 8 bar
Actuation type
Electrical
Information on operating and pilot media
Operation with oil lubrication not possible Maximum particle size 5 µm
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Residual ripple
5 %
Diagnostic function
Indication via LED
Pneumatic connection 3
G3/8
