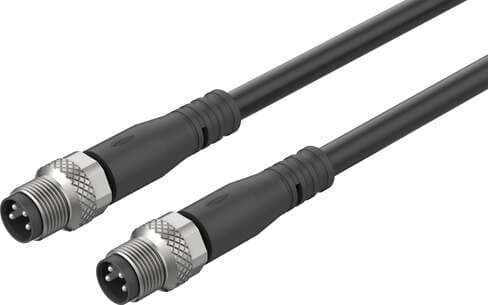

8065123 Festo Cable Assemblies

Product Details

• Cable designation
  Without label holder
• Electrical connection 1, connection technology
  M8x1, D-coded as per EN 61076-2-114
• Electrical connection 2, design
  Round
• Electrical connection 2, cable outlet
  Straight
• Electrical connection 2, type of mounting
  Screw-type lock with longitudinal knurl
• Surge resistance
  1.5 kV
• Cable characteristic
  Suitable for energy chains
• Cable design
  1 x (4 x AWG22)
• Special features
  Oil-resistant
• Storage temperature
  -40 °C ... 70 °C
• Housing colour
  Black
• Insulating sheath material
  PP
• Nominal conductor cross section
  AWG22
• Contact durability
  100
• Product weight
  43 g
• Electrical connection 1, occupied pins/wires
  4
• Electrical connection 2, function
  Control side
• Electrical connection 2, connection pattern
  00995938
• Cable length
  0.5 m
• Bending radius, flexible cable installation
  ≥ 75 mm
Ambient temperature with flexible cable installation
-5 °C ... 60 °C
Housing material
PA TPE-U(PUR)
Electrical connection 1, design
Round
Electrical connection for input 1, connection pattern
00995938
Electrical connection 2, number of pins/wires
4
Current rating at 40°C
3 A
Connector cable test conditions
Test conditions on request
Cable diameter
6.3 mm
Degree of protection
IP65 IP67
Material of cable sheath
TPE-U(PUR)
Seals material
NBR
Material of pin contacts
Copper alloy, gold-plated
Type code
NEBC
Based on norm
EN 61076-2-114
Electrical connection 1, connection type
Plug
Electrical connection 1, function
Control side
Electrical connection 1, number of pins/wires
4
Electrical connection 2, connection technology
M8x1, D-coded as per EN 61076-2-114
Nominal operating voltage DC
24 V
DC operating voltage range
0 V ... 30 V
Protective earth connection
Not available
Cable diameter tolerance
± 0.2 mm
Ambient temperature
-20 °C ... 60 °C
Note on materials
RoHS-compliant Halogen-free
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Transmission characteristics
as per system communication AP
Shield
yes
Electrical connection 1, cable outlet
Straight
Electrical connection 1, type of mounting
Screw-type lock with longitudinal knurl
Electrical connection 2, connection type
Plug
Electrical connection 2, occupied pins/wires
4
Reverse polarity protection
no
Bending radius, fixed cable installation
≥ 20 mm
Note on degree of protection
In mounted state
Contamination level
3
Color cable sheath
Silver-grey with sky blue stripe
Material of screw-type lock
Brass, nickel-plated
