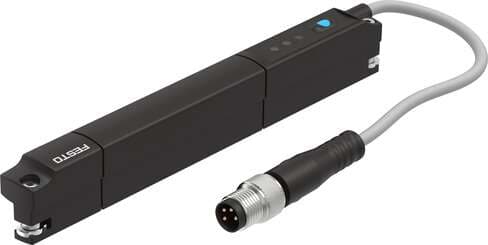

8050121 Festo Position Sensors
Part#:8050121
Alt. Part#:SDAP-MHS-M100-1L-A-E-0.3-M8
Manufacturer:Festo
Category:Position Sensors
Product Lifecycle:Active
Product description
position transmitter SDAP-MHS-M100-1L-A-E-0.3-M8 Design: for T-slot, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, KC mark: KC-EMV, Materials note: (* Conforms to RoHS, * Halogen-fr
Product Details
- Symbol 00995706
- Sensing range 0 µm ... 100000 µm
- Sensitivity 0.16 mA/mm
- Max. load resistance of current output 500 Ohm
- Short-circuit protection yes
- Cable characteristic Suitability for energy chains/robot applications
- Color cable sheath Gray
- Material of union nut Brass, nickel-plated
- Electrical connection 1, connection type Cable with plug
- Design for T-slot
- Measuring principle Magnetic Hall
- Displacement resolution 0.05 mm
- Overload protection Available
- Connection outlet orientation Longitudinal
- Connector cable test conditions Flexural strength: as per Festo standard Torsional resistance: > 300 000 cycles, ±270°/0.1 m
- Mounting position Any
- Ready status indication LED green
- Ambient temperature with flexible cable installation -20 °C ... 70 °C
- Electrical connection for input 1, connection pattern 00991171
- CE marking (see declaration of conformity) As per EU EMC directive
- Note on materials RoHS-compliant Halogen-free
- Max. travel speed 3 m/s
- DC operating voltage range 15 V ... 30 V
- Reverse polarity protection for all electrical connections
- Product weight 26 g
- Degree of protection IP65 IP68
- Type code SDAP
- Electrical connection 1, connection technology M8x1 A-coded as per EN 61076-2-104
- Certification RCM compliance mark c UL us - Listed (OL)
- Measured variable Position
- Ambient temperature -25 °C ... 70 °C
- Analog output 4 - 20 mA
- Material of pin contacts Copper alloy Gold-plated
- Material of cable sheath TPE-U(PUR)
- Housing material Brass, nickel-plated High-alloy stainless steel
- Status indicator LED red
- Electrical connection 1, type of mounting Screw-type lock
- KC characters KC EMC
- Electrical connection 1, number of pins/wires 4
- Typical sampling interval 1 ms
- Typical linearity error in ± mm ±0.25 mm
- Residual ripple 10 %
- Cable length 0.3 m
- Type of mounting Screwed tightly Can be inserted in slot from above
- Film material Polyester
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
