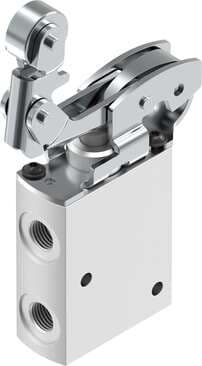

8047105 Festo Mechanical & Manual Valves

Product Details

• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Note on ambient temperature
  Influence of heat on wear
• Pneumatic connection 2
  1/8 NPT
• Lap
  Zero overlap
• Pneumatic working port
  1/8 NPT
• Max. stroke limit (hard)
  11 mm
• Application note
  Risk of pinching
• Symbol
  00991348
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Actuating force
  32.7 N
• Pneumatic connection 1
  1/8 NPT
• Note on materials
  RoHS-compliant
• Operating pressure
  -0.95 bar ... 10 bar
• Standard nominal flow rate
  750 l/min
• Nominal width
  5.6 mm
• Flow direction
  Reversible
• Max. switching frequency
  3 Hz
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Temperature of medium
  -10 °C ... 60 °C
Product weight
227 g
Seals material
NBR
Valve function
3/2, monostable
Width
20 mm
Reset method
Mechanical spring
Type of control
Direct
Sealing principle
Soft
Cam angle
30 deg
Ambient temperature
-10 °C ... 60 °C
Type of mounting
With through-hole
Actuator attachments material
Steel, galvanized
Actuation type
Mechanical
Design
One-way roller lever Plate seat
Type code
VMEF
Mounting position
Any
Max. actuating speed with lateral actuation
0.7 m/s
Pneumatic connection 3
1/8 NPT
Housing material
Wrought aluminum alloy, anodized
