8047103 Festo Mechanical & Manual Valves
Part#:8047103
Alt. Part#:VMEF-KT-M32-M-G14
Manufacturer:Festo
Category:Mechanical & Manual Valves
Product Lifecycle:Active
Product description

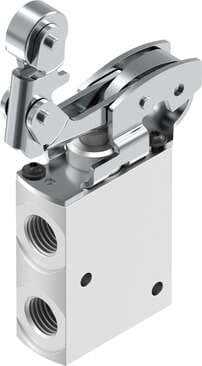

roller lever valve VMEF-KT-M32-M-G14 Valve function: 3/2-way, monostable, Type of actuation: mechanical, Width: 20 mm, Standard nominal flow rate: 870 l/min, Operating pressure MPa: -0,095 - 1 MPa
Product Details
- Application note Risk of pinching
- Mounting position Any
- Symbol 00991348
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Operating pressure -0.95 bar ... 10 bar
- Pneumatic working port G1/4
- Type code VMEF
- Sealing principle Soft
- Flow direction Reversible
- Temperature of medium -10 °C ... 60 °C
- Note on ambient temperature Influence of heat on wear
- Type of mounting With through-hole
- Lap Zero overlap
- Standard nominal flow rate 870 l/min
- Nominal width 6 mm
- Max. switching frequency 3 Hz
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Product weight 218 g
- Actuator attachments material Steel, galvanized
- Actuation type Mechanical
- Design One-way roller lever Plate seat
- Type of control Direct
- Cam angle 30 deg
- Actuating force 32.7 N
- Pneumatic connection 2 G¼
- Note on materials RoHS-compliant
- Valve function 3/2, monostable
- Width 20 mm
- Reset method Mechanical spring
- Max. stroke limit (hard) 11 mm
- Max. actuating speed with lateral actuation 0.7 m/s
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pneumatic connection 1 G1/4
- Housing material Wrought aluminum alloy, anodized
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 3 G1/4
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
