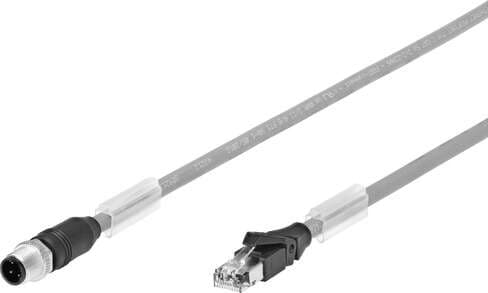

8040452 Festo Cable Assemblies

Product Details

• Type code
  NEBC
• Current rating at 40°C
  1.76 A
• Cable length
  3 m
• Cable design
  2 x (2 x 0.34 mm²)
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Material of pin contacts
  Brass Gold-plated
• Transmission characteristics
  In accordance with category 5, EN 50173, class D According to category 5, ISO/IEC 11801, class D
• Electrical connection 1
  Straight plug, M12x1, 4-pin, D-coded
• DC operating voltage range
  0 V ... 30 V
• Surge resistance
  0.8 kV
• Min. cable bending radius
  100 mm
• Ambient temperature
  -25 °C ... 80 °C
• Housing colour
  Black
• Ethernet cable specification
  Typ: CAT.5
• Electrical connection 2
  Straight plug, RJ45, 4-pin
• Connector cable test conditions
  Flexural strength: as per Festo standard Cable chain: 2 million cycles, bending radius 100 mm
• Nominal conductor cross section
  0.34 mm²
• Special features
  Oil-resistant
• Contamination level
  3
• Insulating sheath material
  PE
Cable diameter
6.7 mm
Note on materials
Free of copper and PTFE RoHS-compliant
Housing material
Brass, nickel-plated TPE-U(PUR)
Threaded sleeve material
Die-cast zinc
Conforms to standard
EN 61076-2-101 IEC 60603-7-3
Cable characteristic
Suitable for energy chains
Degree of protection
IP20
Ambient temperature with flexible cable installation
-20 °C ... 60 °C
Material of cable sheath
TPE-U(PUR)
Color cable sheath
Green
