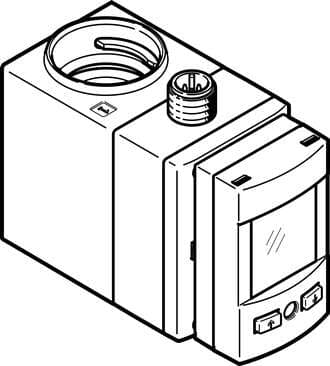

8036890 Festo Flow Sensors

Product Details

• Short-circuit protection
  yes
• KC characters
  KC EMC
• Measured variable
  Flow rate Temperature
• Temperature measuring range end value
  90 °C
• Information on operating pressure
  Max. 12 bar at 40°C Max. 6 bar at 100 °C
• Ambient temperature
  0 °C ... 50 °C
• Repetition accuracy of flow rate value
  < ±0.5 % FS for flow rate <= 50 % FS < ±1 % o.m.v. for flow rate >= 50 %FS
• Switching element function
  N/C contact/N/O contact switchable
• Temperature characteristic curve start value
  0 °C
• Overload protection
  Available
• IO-Link®, SIO mode support
  Yes
• IO-Link®, minimum cycle time
  5 ms
• Electrical connection
  5-pin Plug, straight
• Degree of protection
  IP65
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Flow direction
  Unidirectional P1 -> P2
• Method of measurement
  Flow rate: vortex Temperature: PT1000
• Operating pressure
  0 bar ... 12 bar
• Temperature of medium
  0 °C ... 90 °C
• Accuracy of temperature in ± °C
  2 °C
Switching output
2 x PNP or 2 x NPN switchable
Min. load resistance of voltage output
15 kOhm
Type code
SFAW
Note on materials
RoHS-compliant
Flow measuring range start value
5 l/min
Accuracy of flow rate
±2 % FS for flow rate <= 50 % FS ±3 % o.m.v. for flow rate >= 50 %FS
Max. output current
100 mA
Max. load resistance of current output
500 Ohm
IO-Link®, function classes
Binary data channel (BDC) Teach channel
IO-Link®, process data content IN
1 bit BDC (temperature monitoring) 2 bit BDC (flow monitoring)
Mounting position
Any
Corrosion resistance class (CRC)
3 - High corrosion stress
Certification
RCM compliance mark c UL us - Listed (OL)
Flow measuring range end value
100 l/min
Information on operating and pilot media
Media with a kinematic viscosity = 1.8 mm²/sec. [cSt]. Compatibility of the media with the substances that come into contact with the media must be ensured.
Nominal temperature
23 °C
Temperature co-efficient margin in ± %FS/K
Typ. ±0.05% FS/K
Analog output
0 - 10 V 1 - 5 V
Flow characteristic curve, end value
100 l/min
IO-Link®, protocol version
Device V 1.1
IO-Link®, process data width OUT
0 Byte
DC operating voltage range
18 V ... 30 V
Housing material
PA-reinforced
Symbol
00995566
Temperature measuring range start value
0 °C
Operating medium
Liquid media Neutral liquids
Switching function
Window comparator Freely programmable
Flow characteristic curve, start value
0 l/min
Temperature characteristic curve end value
100 °C
Protocol
IO-Link®
IO-Link®, profile
Smart sensor profile
IO-Link®, process data width IN
5 Byte
Reverse polarity protection
for all electrical connections
Max. cable length
20 m for IO-Link® operation 30 m
Displayable unit(s)
US gal °F
Product weight
140 g
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, port class
A
IO-Link®, service data contents IN
32 bit volume measurement
IO-Link®, data memory required
500 byte
Fluid connector
Connection provided by the user
Materials in contact with the media
EPDM (peroxide) PA6T/6I-reinforced
