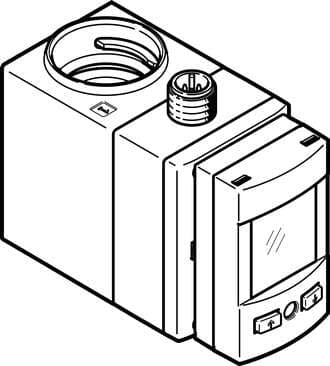

8036887 Festo Flow Sensors

Product Details

• Certification
  RCM compliance mark c UL us - Listed (OL)
• Flow direction
  Unidirectional P1 -> P2
• Flow measuring range end value
  32 l/min
• Accuracy of temperature in ± °C
  2 °C
• Max. output current
  100 mA
• IO-Link®, profile
  Smart sensor profile
• IO-Link®, service data contents IN
  32 bit volume measurement
• IO-Link®, minimum cycle time
  5 ms
• Mounting position
  Any
• Corrosion resistance class (CRC)
  3 - High corrosion stress
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Method of measurement
  Flow rate: vortex Temperature: PT1000
• Operating medium
  Liquid media Neutral liquids
• Nominal temperature
  23 °C
• Switching function
  Window comparator Freely programmable
• Flow characteristic curve, start value
  0 l/min
• Overload protection
  Available
• IO-Link®, function classes
  Binary data channel (BDC) Teach channel
• IO-Link®, process data width OUT
  0 Byte
• IO-Link®, port class
  A
Electrical connection
5-pin Plug, straight
Product weight
140 g
Symbol
00995566
Flow measuring range start value
1.8 l/min
Information on operating pressure
Max. 12 bar at 40°C Max. 6 bar at 100 °C
Information on operating and pilot media
Media with a kinematic viscosity = 1.8 mm²/sec. [cSt]. Compatibility of the media with the substances that come into contact with the media must be ensured.
Accuracy of flow rate
±2 % FS for flow rate <= 50 % FS ±3 % o.m.v. for flow rate >= 50 %FS
Flow characteristic curve, end value
32 l/min
Min. load resistance of voltage output
15 kOhm
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, process data content IN
1 bit BDC (volume monitoring) 2 bit BDC (flow monitoring)
IO-Link®, data memory required
500 byte
Max. cable length
20 m for IO-Link® operation 30 m
Materials in contact with the media
EPDM (peroxide) PA6T/6I-reinforced
Type code
SFAW
Operating pressure
0 bar ... 12 bar
Ambient temperature
0 °C ... 50 °C
Temperature co-efficient margin in ± %FS/K
Typ. ±0.05% FS/K
Switching output
2 x PNP or 2 x NPN switchable
Short-circuit protection
yes
IO-Link®, protocol version
Device V 1.1
IO-Link®, SIO mode support
Yes
DC operating voltage range
18 V ... 30 V
Fluid connector
Connection provided by the user
Displayable unit(s)
US gal °F
KC characters
KC EMC
Note on materials
RoHS-compliant
Measured variable
Flow rate Temperature
Temperature of medium
0 °C ... 90 °C
Repetition accuracy of flow rate value
< ±0.5 % FS for flow rate <= 50 % FS < ±1 % o.m.v. for flow rate >= 50 %FS
Switching element function
N/C contact/N/O contact switchable
Analog output
0 - 10 V 1 - 5 V
Max. load resistance of current output
500 Ohm
Protocol
IO-Link®
IO-Link®, process data width IN
3 Byte
Reverse polarity protection
for all electrical connections
Housing material
PA-reinforced
Degree of protection
IP65
