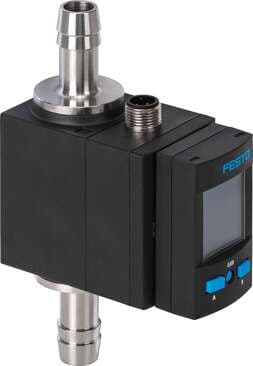

8036879 Festo Flow Sensors

Product Details

• Measured variable
  Flow rate Temperature
• Flow measuring range start value
  1.8 l/min
• Accuracy of flow rate
  ±2 % FS for flow rate <= 50 % FS ±3 % o.m.v. for flow rate >= 50 %FS
• Switching element function
  N/C contact/N/O contact switchable
• Min. load resistance of voltage output
  15 kOhm
• IO-Link®, profile
  Smart sensor profile
• IO-Link®, port class
  A
• IO-Link®, process data width IN
  3 Byte
• IO-Link®, minimum cycle time
  5 ms
• Max. cable length
  20 m for IO-Link® operation 30 m
• Housing material
  PA-reinforced
• Materials in contact with the media
  EPDM (peroxide) PA6T/6I-reinforced
• KC characters
  KC EMC
• Note on materials
  RoHS-compliant
• Flow measuring range end value
  32 l/min
• Temperature of medium
  0 °C ... 90 °C
• Accuracy of temperature in ± °C
  2 °C
• Switching output
  2 x PNP or 2 x NPN switchable
• Flow characteristic curve, start value
  0 l/min
• Overload protection
  Available
IO-Link®, SIO mode support
Yes
IO-Link®, process data width OUT
0 Byte
Reverse polarity protection
for all electrical connections
Fluid connector
Barbed hose fitting 13 mm
Corrosion resistance class (CRC)
3 - High corrosion stress
Symbol
00995566
Flow direction
Unidirectional P1 -> P2
Operating pressure
0 bar ... 12 bar
Operating medium
Liquid media Neutral liquids
Repetition accuracy of flow rate value
< ±0.5 % FS for flow rate <= 50 % FS < ±1 % o.m.v. for flow rate >= 50 %FS
Temperature co-efficient margin in ± %FS/K
Typ. ±0.05% FS/K
Flow characteristic curve, end value
32 l/min
Protocol
IO-Link®
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, process data content IN
1 bit BDC (volume monitoring) 2 bit BDC (flow monitoring)
DC operating voltage range
18 V ... 30 V
Product weight
300 g
Certification
RCM compliance mark c UL us - Listed (OL)
Information on operating and pilot media
Media with a kinematic viscosity = 1.8 mm²/sec. [cSt]. Compatibility of the media with the substances that come into contact with the media must be ensured.
Nominal temperature
23 °C
Max. output current
100 mA
Short-circuit protection
yes
IO-Link®, function classes
Binary data channel (BDC) Teach channel
IO-Link®, service data contents IN
32 bit volume measurement
IO-Link®, data memory required
500 byte
Electrical connection
5-pin Plug, straight
Displayable unit(s)
US gal °F
Type code
SFAW
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Method of measurement
Flow rate: vortex Temperature: PT1000
Information on operating pressure
Max. 12 bar at 40°C Max. 6 bar at 100 °C
Ambient temperature
0 °C ... 50 °C
Switching function
Window comparator Freely programmable
Analog output
0 - 10 V 1 - 5 V
Max. load resistance of current output
500 Ohm
IO-Link®, protocol version
Device V 1.1
Mounting position
Any
Degree of protection
IP65
