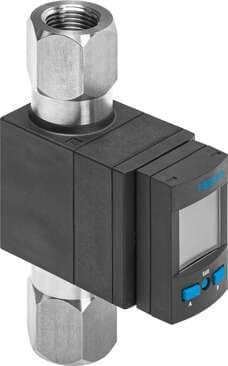

8036878 Festo Flow Sensors

Product Details

• Note on materials
  RoHS-compliant
• Flow measuring range start value
  5 l/min
• Operating medium
  Liquid media Neutral liquids
• Temperature co-efficient margin in ± %FS/K
  Typ. ±0.05% FS/K
• Switching element function
  N/C contact/N/O contact switchable
• Flow characteristic curve, start value
  0 l/min
• Protocol
  IO-Link®
• IO-Link®, function classes
  Binary data channel (BDC) Teach channel
• IO-Link®, service data contents IN
  32 bit volume measurement
• IO-Link®, process data width IN
  5 Byte
• Mounting position
  Any
• Degree of protection
  IP65
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Method of measurement
  Flow rate: vortex Temperature: PT1000
• Information on operating and pilot media
  Media with a kinematic viscosity = 1.8 mm²/sec. [cSt]. Compatibility of the media with the substances that come into contact with the media must be ensured.
• Accuracy of temperature in ± °C
  2 °C
• Analog output
  0 - 10 V 1 - 5 V
• Temperature characteristic curve end value
  100 °C
• IO-Link®, profile
  Smart sensor profile
• IO-Link®, port class
  A
IO-Link®, data memory required
500 byte
DC operating voltage range
18 V ... 30 V
Housing material
PA-reinforced
Symbol
00995566
Measured variable
Flow rate Temperature
Temperature measuring range start value
0 °C
Ambient temperature
0 °C ... 50 °C
Repetition accuracy of flow rate value
< ±0.5 % FS for flow rate <= 50 % FS < ±1 % o.m.v. for flow rate >= 50 %FS
Switching function
Window comparator Freely programmable
Min. load resistance of voltage output
15 kOhm
Max. load resistance of current output
500 Ohm
IO-Link®, protocol version
Device V 1.1
IO-Link®, minimum cycle time
5 ms
Max. cable length
20 m for IO-Link® operation 30 m
Product weight
400 g
Type code
SFAW
Flow direction
Unidirectional P1 -> P2
Temperature measuring range end value
90 °C
Information on operating pressure
Max. 12 bar at 40°C Max. 6 bar at 100 °C
Nominal temperature
23 °C
Switching output
2 x PNP or 2 x NPN switchable
Flow characteristic curve, end value
100 l/min
Short-circuit protection
yes
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, process data width OUT
0 Byte
Reverse polarity protection
for all electrical connections
Materials in contact with the media
EPDM (peroxide) PA6T/6I-reinforced
Corrosion resistance class (CRC)
3 - High corrosion stress
KC characters
KC EMC
Certification
RCM compliance mark c UL us - Listed (OL)
Flow measuring range end value
100 l/min
Operating pressure
0 bar ... 12 bar
Temperature of medium
0 °C ... 90 °C
Accuracy of flow rate
±2 % FS for flow rate <= 50 % FS ±3 % o.m.v. for flow rate >= 50 %FS
Max. output current
100 mA
Temperature characteristic curve start value
0 °C
Overload protection
Available
IO-Link®, SIO mode support
Yes
IO-Link®, process data content IN
1 bit BDC (temperature monitoring) 2 bit BDC (flow monitoring)
Electrical connection
5-pin Plug, straight
Fluid connector
Internal thread G1
Displayable unit(s)
US gal °F
