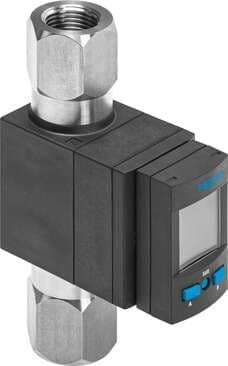

8036873 Festo Flow Sensors

Product Details

• Type code
  SFAW
• Note on materials
  RoHS-compliant
• Flow measuring range start value
  1.8 l/min
• Information on operating pressure
  Max. 12 bar at 40°C Max. 6 bar at 100 °C
• Repetition accuracy of flow rate value
  < ±0.5 % FS for flow rate <= 50 % FS < ±1 % o.m.v. for flow rate >= 50 %FS
• Switching element function
  N/C contact/N/O contact switchable
• Min. load resistance of voltage output
  15 kOhm
• IO-Link®, protocol version
  Device V 1.1
• IO-Link®, process data width OUT
  0 Byte
• IO-Link®, service data contents IN
  32 bit volume measurement
• Electrical connection
  5-pin Plug, straight
• Fluid connector
  Internal thread G3/4
• Flow direction
  Unidirectional P1 -> P2
• Operating medium
  Liquid media Neutral liquids
• Accuracy of flow rate
  ±2 % FS for flow rate <= 50 % FS ±3 % o.m.v. for flow rate >= 50 %FS
• Temperature co-efficient margin in ± %FS/K
  Typ. ±0.05% FS/K
• Max. output current
  100 mA
• Short-circuit protection
  yes
• IO-Link®, function classes
  Binary data channel (BDC) Teach channel
• IO-Link®, process data width IN
  3 Byte
IO-Link®, data memory required
500 byte
Housing material
PA-reinforced
Materials in contact with the media
EPDM (peroxide) PA6T/6I-reinforced
KC characters
KC EMC
Method of measurement
Flow rate: vortex Temperature: PT1000
Operating pressure
0 bar ... 12 bar
Nominal temperature
23 °C
Switching function
Window comparator Freely programmable
Flow characteristic curve, start value
0 l/min
Protocol
IO-Link®
IO-Link®, port class
A
IO-Link®, process data content IN
1 bit BDC (volume monitoring) 2 bit BDC (flow monitoring)
Mounting position
Any
Degree of protection
IP65
Certification
RCM compliance mark c UL us - Listed (OL)
Measured variable
Flow rate Temperature
Temperature of medium
0 °C ... 90 °C
Information on operating and pilot media
Media with a kinematic viscosity = 1.8 mm²/sec. [cSt]. Compatibility of the media with the substances that come into contact with the media must be ensured.
Switching output
2 x PNP or 2 x NPN switchable
Max. load resistance of current output
500 Ohm
Flow characteristic curve, end value
32 l/min
IO-Link®, profile
Smart sensor profile
IO-Link®, minimum cycle time
5 ms
Reverse polarity protection
for all electrical connections
Product weight
530 g
Corrosion resistance class (CRC)
3 - High corrosion stress
Symbol
00995566
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Flow measuring range end value
32 l/min
Ambient temperature
0 °C ... 50 °C
Accuracy of temperature in ± °C
2 °C
Analog output
0 - 10 V 1 - 5 V
Overload protection
Available
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, SIO mode support
Yes
DC operating voltage range
18 V ... 30 V
Max. cable length
20 m for IO-Link® operation 30 m
Displayable unit(s)
US gal °F
