8035788 Festo Cable Assemblies

Product Details

• Cable diameter 1
  3.8 mm
• Based on norm
  EN 61076-2-101
• Distributor type
  2 to 1
• Product weight
  159 g
• Electrical connection 1, connection type
  Plug
• Electrical connection 2, design
  Rectangular
• Electrical connection 2, connection technology
  Connection diagram ZC, metric screw
• Cable length 2
  0.3 m
• Electrical connection 1, design
  Round
• Electrical connection for input 1, connection pattern
  00995635
• Electrical connection 2, number of pins/wires
  2
• Electrical connection 2, connection pattern
  00995625
• Current rating at 40°C
  1 A
• Ambient temperature
  -10 °C ... 50 °C
• Type code
  NEDY
• Additional functions
  Holding current reduction
• Electrical connection 1, function
  Control side
• Electrical connection 1, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Electrical connection 2, function
  Field device end
• Electrical connection 2, occupied pins/wires
  2
Cable length 1
5 m
Note on connector cable test conditions
Standard: cable chain: 1.5 million cycles, bending radius 75 mm; flexural strength: as per Festo standard, test conditions on request
Bending radius 2, flexible cable installation
30 mm
Degree of protection
IP65
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Material of cable sheath
TPE-U(PUR)
Material of pin contacts
Copper alloy, gold-plated Copper alloy, tin-plated

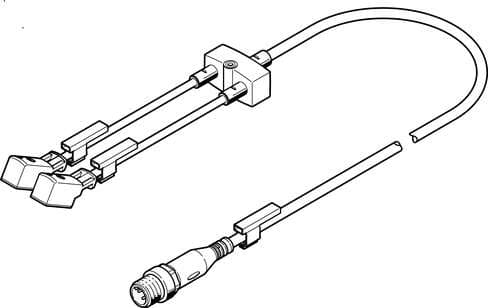

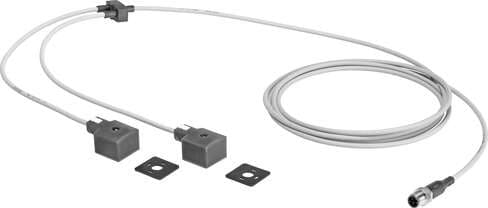

Design
Y-distributor with cables at both ends
Cable designation
With label holder
Electrical connection 1, cable outlet
Straight
Electrical connection 1, occupied pins/wires
3
Electrical connection 2, cable outlet
Angled
Surge resistance
0.8 kV
Information on cable characteristics
Standard for field device side
Bending radius 1, flexible cable installation
39 mm
Cable diameter 2
2.9 mm
Ambient temperature with flexible cable installation
-5 °C ... 50 °C
Contamination level
3
Color cable sheath
Gray
Threaded sleeve material
Brass, nickel-plated
Certification
RCM compliance mark
Signal status display
LED yellow
Type of mounting
With through-hole for M2 screw With accessories
Electrical connection 1, number of pins/wires
4
Electrical connection 2, connection type
2x socket
DC operating voltage range
20.4 V ... 27.6 V
Cable characteristic
Suitability for energy chains/robot applications
Nominal conductor cross section
0.25 mm²
Storage temperature
-10 °C ... 50 °C
Housing material
PA TPE-U(PUR)
Connector cable test conditions
Flexural strength: as per Festo standard Torsional resistance: > 300 000 cycles, ±270°/0.1 m
Note on ambient temperature
-10 - 40 °C when mounted via through-hole
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Housing colour
Black
Note on materials
Free of copper and PTFE RoHS-compliant
Seals material
NBR TPE-O
