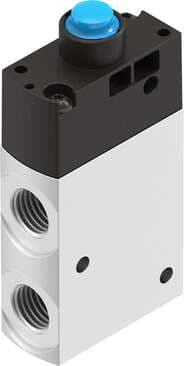

8031336 Festo Mechanical & Manual Valves

Product Details

• Lap
  Zero overlap
• Actuation type
  Mechanical
• Nominal width
  6 mm
• Reset method
  Mechanical spring
• Type of control
  Pilot-controlled
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Actuating force
  14 N
• Pilot air port 12/14
  M5
• Cover material
  PA-reinforced
• Valve function
  3/2, closed, monostable
• Width
  20 mm
• Type code
  VMEF
• Flow direction
  Reversible
• Symbol
  00995674
• Temperature of medium
  -10 °C ... 60 °C
• Pneumatic connection 3
  G1/4
• Note on materials
  RoHS-compliant
• Housing material
  Wrought aluminum alloy, anodized
• Operating pressure
  -0.95 bar ... 10 bar
• Standard nominal flow rate
  870 l/min
Mounting position
Any
Max. switching frequency
3 Hz
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
124 g
Seals material
NBR
Design
Plate seat
Sealing principle
Soft
Pilot pressure
3 bar ... 10 bar
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Type of mounting
With through-hole
Pneumatic connection 2
G¼
Pneumatic working port
G1/4
Application note
Do not use as mechanical stop
Pilot air supply port
External
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 1
G1/4
