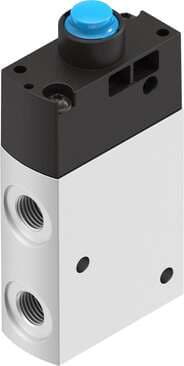

8031335 Festo Mechanical & Manual Valves

Product Details

• Actuation type
  Mechanical
• Pneumatic working port
  G1/8
• Reset method
  Mechanical spring
• Lap
  Zero overlap
• Standard nominal flow rate
  750 l/min
• Application note
  Do not use as mechanical stop
• Sealing principle
  Soft
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Actuating force
  14 N
• Pneumatic connection 1
  G1/8
• Seals material
  NBR
• Operating pressure
  -0.95 bar ... 10 bar
• Nominal width
  5.6 mm
• Type of control
  Pilot-controlled
• Pilot pressure
  3 bar ... 10 bar
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pilot air port 12/14
  M5
• Pneumatic connection 2
  G1/8
• Design
  Plate seat
• Mounting position
  Any
Flow direction
Reversible
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Ambient temperature
-10 °C ... 60 °C
Type of mounting
With through-hole
Note on materials
RoHS-compliant
Valve function
3/2, closed, monostable
Width
20 mm
Type code
VMEF
Symbol
00995674
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Cover material
PA-reinforced
Pilot air supply port
External
Max. switching frequency
3 Hz
Temperature of medium
-10 °C ... 60 °C
Product weight
131 g
Pneumatic connection 3
G1/8
Housing material
Wrought aluminum alloy, anodized
