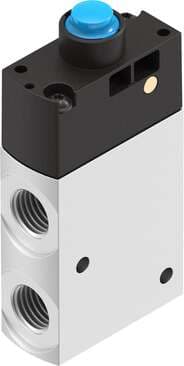

8031334 Festo Mechanical & Manual Valves

Product Details

• Actuation type
  Mechanical
• Valve function
  3/2, closed, monostable
• Standard nominal flow rate
  870 l/min
• Application note
  Do not use as mechanical stop
• Flow direction
  Reversible
• Symbol
  00991291
• Actuating force
  14 N
• Pneumatic connection 2
  1/4 NPT
• Housing material
  Wrought aluminum alloy, anodized
• Nominal width
  6 mm
• Mounting position
  Any
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Product weight
  124 g
• Pilot air port 12/14
  M5
• Lap
  Zero overlap
• Width
  20 mm
• Design
  Plate seat
• Sealing principle
  Soft
• Pilot air supply port
  Internal
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
With through-hole
Pneumatic connection 1
1/4 NPT
Operating pressure
3.5 bar ... 10 bar
Pneumatic working port
1/4 NPT
Type code
VMEF
Type of control
Pilot-controlled
Max. switching frequency
3 Hz
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 3
1/4 NPT
Seals material
NBR
Reset method
Mechanical spring
Pilot pressure
3.5 bar ... 10 bar
Temperature of medium
-10 °C ... 60 °C
Note on materials
RoHS-compliant
Cover material
PA-reinforced
