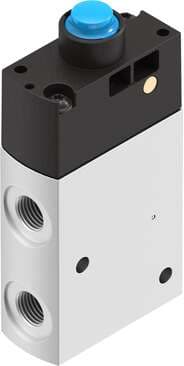

8031331 Festo Mechanical & Manual Valves

Product Details

• Actuation type
  Mechanical
• Nominal width
  5.6 mm
• Type of control
  Pilot-controlled
• Max. switching frequency
  3 Hz
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  With through-hole
• Pneumatic connection 3
  G1/8
• Seals material
  NBR
• Lap
  Zero overlap
• Standard nominal flow rate
  750 l/min
• Reset method
  Mechanical spring
• Mounting position
  Any
• Flow direction
  Reversible
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Actuating force
  14 N
• Cover material
  PA-reinforced
• Operating pressure
  3.5 bar ... 10 bar
• Type code
  VMEF
• Application note
  Do not use as mechanical stop
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Pilot air port 12/14
M5
Note on materials
RoHS-compliant
Valve function
3/2, closed, monostable
Width
20 mm
Design
Plate seat
Symbol
00991291
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 1
G1/8
Housing material
Wrought aluminum alloy, anodized
Pneumatic working port
G1/8
Sealing principle
Soft
Pilot air supply port
Internal
Pilot pressure
3.5 bar ... 10 bar
Temperature of medium
-10 °C ... 60 °C
Product weight
131 g
Pneumatic connection 2
G1/8
