8031327 Festo Mechanical & Manual Valves
Part#:8031327
Alt. Part#:VMEF-SCZ-M52-M-G14
Manufacturer:Festo
Category:Mechanical & Manual Valves
Product Lifecycle:Active
Product description

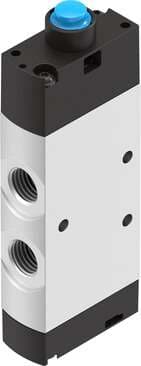

stem actuated valve VMEF-SCZ-M52-M-G14 Valve function: 5/2 monostable, Type of actuation: mechanical, Width: 20 mm, Standard nominal flow rate: 1200 l/min, Operating pressure MPa: -0,095 - 1 MPa
Product Details
- Mounting position Any
- Flow direction Reversible
- Actuation type Mechanical
- Application note Do not use as mechanical stop
- Symbol 00992220
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Pneumatic connection 1 G1/4
- Housing material Wrought aluminum alloy, anodized
- Design Piston gate valve
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Product weight 184 g
- Pneumatic connection 4 G1/4
- Note on materials RoHS-compliant
- Cover material PA-reinforced
- Valve function 5/2, monostable
- Pneumatic working port G1/4
- Type of control Pilot-controlled
- Max. switching frequency 3 Hz
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Actuating force 14 N
- Pneumatic connection 2 G¼
- Seals material NBR
- Lap Overlap
- Width 20 mm
- Nominal width 7 mm
- Sealing principle Soft
- Pilot air supply port External
- Temperature of medium -10 °C ... 60 °C
- Type of mounting With through-hole
- Pneumatic connection 5 G1/4
- Operating pressure -0.95 bar ... 10 bar
- Standard nominal flow rate 1200 l/min
- Type code VMEF
- Reset method Mechanical spring
- Pilot pressure 2.5 bar ... 10 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature -10 °C ... 60 °C
- Pilot air port 12/14 M5
- Pneumatic connection 3 G1/4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
