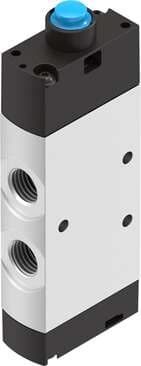

8031321 Festo Mechanical & Manual Valves

Product Details

• Valve function
  5/2, monostable
• Pneumatic working port
  1/4 NPT
• Reset method
  Mechanical spring
• Symbol
  00992218
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Ambient temperature
  -10 °C ... 60 °C
• Max. switching frequency
  3 Hz
• Pilot air port 12/14
  M5
• Nominal width
  7 mm
• Sealing principle
  Soft
• Actuation type
  Mechanical
• Application note
  Do not use as mechanical stop
• Pilot air supply port
  Internal
• Flow direction
  Non-reversible
• Temperature of medium
  -10 °C ... 60 °C
• Type of mounting
  With through-hole
• Pneumatic connection 3
  1/4 NPT
• Note on materials
  RoHS-compliant
• Cover material
  PA-reinforced
• Lap
  Overlap
Standard nominal flow rate
1200 l/min
Type code
VMEF
Type of control
Pilot-controlled
Operating pressure
2.5 bar ... 10 bar
Width
20 mm
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Actuating force
14 N
Pneumatic connection 1
1/4 NPT
Pneumatic connection 4
1/4 NPT
Seals material
NBR
Design
Piston gate valve
Mounting position
Any
Pilot pressure
2.5 bar ... 10 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
184 g
Pneumatic connection 2
1/4 NPT
Pneumatic connection 5
1/4 NPT
Housing material
Wrought aluminum alloy, anodized
