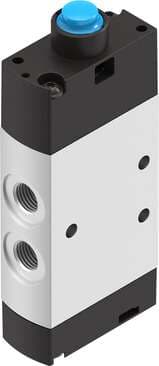

8031320 Festo Mechanical & Manual Valves

Product Details

• Nominal width
  5.2 mm
• Type of control
  Pilot-controlled
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Product weight
  151 g
• Pneumatic connection 4
  G1/8
• Housing material
  Wrought aluminum alloy, anodized
• Actuation type
  Mechanical
• Standard nominal flow rate
  750 l/min
• Type code
  VMEF
• Pilot air supply port
  Internal
• Max. switching frequency
  3 Hz
• Temperature of medium
  -10 °C ... 60 °C
• Pneumatic connection 1
  G1/8
• Pneumatic connection 2
  G1/8
• Pneumatic connection 5
  G1/8
• Lap
  Overlap
• Pneumatic working port
  G1/8
• Sealing principle
  Soft
• Symbol
  00992218
• Pilot air port 12/14
  M5
Seals material
NBR
Operating pressure
2.5 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Flow direction
Non-reversible
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
With through-hole
Actuating force
14 N
Cover material
PA-reinforced
Valve function
5/2, monostable
Width
20 mm
Application note
Do not use as mechanical stop
Mounting position
Any
Pilot pressure
2.5 bar ... 10 bar
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 3
G1/8
Note on materials
RoHS-compliant
