8005150 Festo Valve Manifold Accessories

8005150 on Powermatic Associates
Festo

Part#:8005150

Alt. Part#:VMPA1-IC-AP-S-1-EX1E

Manufacturer:Festo

Category:Valve Manifold Accessories

Product Lifecycle:Active

Product description

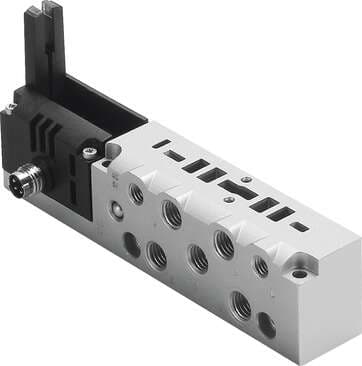

sub-base VMPA1-IC-AP-S-1-EX1E Width: 20,2 mm, Length: 107,3 mm, Grid dimension: 10,5 mm, Operating pressure: -0,9 - 10 bar, Pilot pressure: 3 - 8 bar

Product Details

  • Width dimension
    10.5 mm
  • CE marking (see declaration of conformity)
    As per EU EMC directive as per EU explosion protection directive (ATEX)
  • Product weight
    92 g
  • Pneumatic connection 5
    M7
  • Type code
    VMPA1
  • Ambient temperature
    -5 °C ... 50 °C
  • Sub-base mounting type
    With through-hole
  • Pneumatic connection 3
    M7
  • KC characters
    KC EMC
  • Operating pressure
    -0.09 MPa ... 1 MPa
  • Type of ignition protection for gas
    Ex nA IIC T4 X Gc
  • Electrical connection
    M8 Plug
  • Pilot air port 12/14
    M5
  • Pneumatic connection 2
    M7
  • Pilot pressure MPa
    0.3 MPa ... 0.8 MPa
  • Length
    107.3 mm
  • ATEX category gas
    II 3G
  • Explosive ambient temperature
    -5°C <= Ta <= +50°C
  • Pilot exhaust air port 82/84
    M5
  • Pneumatic connection 4
    M7
  • Material of sub-base
    Die-cast aluminum
  • Width
    20.2 mm
  • Pilot pressure
    3 bar ... 8 bar
  • Explosion prevention and protection
    Zone 2 (ATEX)
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Pneumatic connection 1
    M7
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
