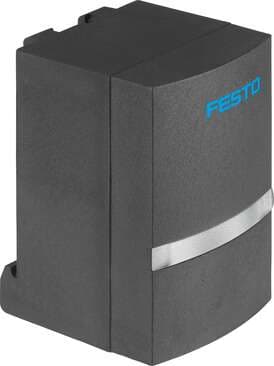

8003351 Festo Pressure Sensors

Product Details

• Electrical connection for input 1, connection pattern
  00995386
• Pressure measuring range end value
  -1 bar
• Temperature co-efficient in ± %FS/K
  0.05 %FS/K
• Min. load resistance of voltage output
  10 kOhm
• IO-Link®, profile
  Smart sensor profile
• Type code
  SPAU
• Electrical connection 1, number of pins/wires
  4
• Note on materials
  RoHS-compliant
• Pressure measuring range initial value
  0 bar
• Information on operating and pilot media
  Operation with oil lubrication possible
• ADC resolution
  12 bit
• Accuracy in ± % FS
  1.5 %FS
• Max. output current
  100 mA
• Short-circuit protection
  yes
• IO-Link®, communication mode
  COM2 (38,4 kBd)
• KC characters
  KC EMC
• Symbol
  00995411
• Switching function
  Freely programmable
• Max. load resistance of current output
  500 Ohm
• IO-Link®, protocol version
  Device V 1.1
IO-Link®, process data width IN
2 Byte
DC operating voltage range
20 V ... 30 V
Display type
LED
Protection against tampering
IO-Link®
Electrical connection 1, connection type
Plug
Certification
RCM compliance mark c UL us - Listed (OL)
Measured variable
Relative pressure
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Ambient temperature
0 °C ... 50 °C
Switching output
2xPNP
Switching element function
N/C contact/N/O contact switchable
Rise time
3 ms
IO-Link®, function classes
Binary data channel (BDC) Teach channel
IO-Link®, port class
A
Mounting position
Any
Setting options
IO-Link®
Electrical connection 1, connection technology
M12x1 A-coded as per EN 61076-2-101
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Method of measurement
Piezoresistive pressure sensor
Max. overload pressure
5 bar
Temperature of medium
0 °C ... 50 °C
Repetition accuracy in ± %FS
0.3 %FS
Analog output
0 - 10 V
Protocol
IO-Link®
IO-Link®, SIO mode support
Yes
IO-Link®, data memory required
500 byte
Reverse polarity protection
for all electrical connections
Displayable unit(s)
MPa psi
Degree of protection
IP65 IP67
IO-Link®, process data content IN
14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)
IO-Link®, process data width OUT
0 Byte
Pneumatic connection
QS-4
Setting range threshold value
0 % ... 100 %
IO-Link®, minimum cycle time
3 ms
Type of mounting
With H-rail
Product weight
65 g
Setting range hysteresis
0 % ... 90 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
