8003350 Festo Pressure Sensors

Name: 8003350
Brand: Festo

Part#:8003350

Manufacturer:Festo

Category:Pressure Sensors

Alt. Part#:SPAU-P10R-H-Q4D-LK-A-M12D

Product Lifecycle:Active

Get a quick Quote!

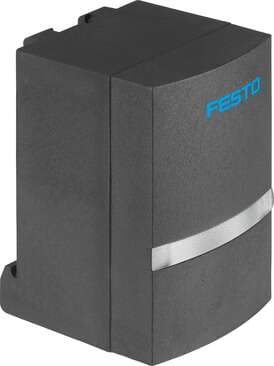

pressure sensor SPAU-P10R-H-Q4D-LK-A-M12D Suitable for monitoring compressed air and non-corrosive gases, mounting using H-rail, without display. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): (* to EU direc

About the manufacturer: Festo is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8003350 Festo price in the box on the right side or send a quick quote.

Product Details

Certification
RCM compliance mark c UL us - Listed (OL)
Pressure measuring range end value
10 bar
Accuracy in ± % FS
1.5 %FS
Switching function
Freely programmable
Rise time
3 ms
Protocol
IO-Link®
IO-Link®, SIO mode support
Yes
IO-Link®, minimum cycle time
3 ms
Electrical connection for input 1, connection pattern
00995386
Electrical connection 1, number of pins/wires
4
Method of measurement
Piezoresistive pressure sensor
Max. overload pressure
15 bar
ADC resolution
12 bit
Repetition accuracy in ± %FS
0.3 %FS
Analog output
4 - 20 mA
IO-Link®, profile
Smart sensor profile
IO-Link®, data memory required
500 byte
Reverse polarity protection
for all electrical connections
Pneumatic connection
QS-4
Corrosion resistance class (CRC)
2 - Moderate corrosion stress

KC characters

KC EMC

CE marking (see declaration of conformity)

As per EU EMC directive As per EU RoHS directive

Information on operating and pilot media

Operation with oil lubrication possible

Ambient temperature

0 °C ... 50 °C

Switching element function

N/C contact/N/O contact switchable

Short-circuit protection

yes

IO-Link®, communication mode

COM2 (38,4 kBd)

IO-Link®, process data width OUT

0 Byte

Mounting position

Any

Displayable unit(s)

MPa psi

Setting range threshold value

0 % ... 100 %

Electrical connection 1, connection technology

M12x1 A-coded as per EN 61076-2-101

Symbol

00995412

Pressure measuring range initial value

0 bar

Temperature of medium

0 °C ... 50 °C

Temperature co-efficient in ± %FS/K

0.05 %FS/K

Max. load resistance of current output

500 Ohm

IO-Link®, protocol version

Device V 1.1

IO-Link®, port class

IO-Link®, process data content IN

14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)

Type of mounting

With H-rail

Setting options

IO-Link®

Setting range hysteresis

0 % ... 90 %

Type code

SPAU

Electrical connection 1, connection type

Plug

Measured variable

Relative pressure

Note on materials

RoHS-compliant

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas

Switching output

2xPNP

Max. output current

100 mA

Min. load resistance of voltage output

10 kOhm

IO-Link®, function classes

Binary data channel (BDC) Teach channel

IO-Link®, process data width IN

2 Byte

DC operating voltage range

20 V ... 30 V

Protection against tampering

IO-Link®

Degree of protection

IP65 IP67

Product weight

65 g

Display type

LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
