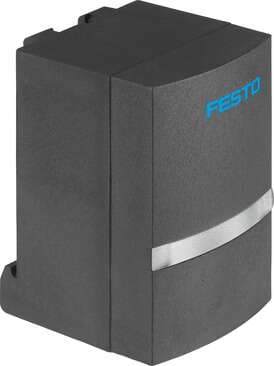

8003352 Festo Pressure Sensors

Product Details

• Type code
  SPAU
• Electrical connection 1, connection type
  Plug
• Note on materials
  RoHS-compliant
• Max. overload pressure
  5 bar
• Accuracy in ± % FS
  1.5 %FS
• Switching output
  2xPNP
• Analog output
  4 - 20 mA
• Setting range hysteresis
  0 % ... 90 %
• Electrical connection 1, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Pressure measuring range initial value
  0 bar
• Temperature of medium
  0 °C ... 50 °C
• Temperature co-efficient in ± %FS/K
  0.05 %FS/K
• Max. output current
  100 mA
• Min. load resistance of voltage output
  10 kOhm
• IO-Link®, protocol version
  Device V 1.1
• IO-Link®, communication mode
  COM2 (38,4 kBd)
• IO-Link®, data memory required
  500 byte
• Reverse polarity protection
  for all electrical connections
• Pneumatic connection
  QS-4
Setting options
IO-Link®
Degree of protection
IP65 IP67
Electrical connection for input 1, connection pattern
00995386
Electrical connection 1, number of pins/wires
4
Measured variable
Relative pressure
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Repetition accuracy in ± %FS
0.3 %FS
Switching element function
N/C contact/N/O contact switchable
Max. load resistance of current output
500 Ohm
IO-Link®, profile
Smart sensor profile
IO-Link®, SIO mode support
Yes
IO-Link®, process data width IN
2 Byte
Type of mounting
With H-rail
Product weight
65 g
Protection against tampering
IO-Link®
KC characters
KC EMC
Symbol
00995412
Method of measurement
Piezoresistive pressure sensor
Information on operating and pilot media
Operation with oil lubrication possible
Ambient temperature
0 °C ... 50 °C
Short-circuit protection
yes
IO-Link®, function classes
Binary data channel (BDC) Teach channel
IO-Link®, port class
A
IO-Link®, minimum cycle time
3 ms
Mounting position
Any
Displayable unit(s)
MPa psi
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Pressure measuring range end value
-1 bar
ADC resolution
12 bit
Switching function
Freely programmable
Rise time
3 ms
Protocol
IO-Link®
IO-Link®, process data width OUT
0 Byte
IO-Link®, process data content IN
14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)
DC operating voltage range
20 V ... 30 V
Display type
LED
Setting range threshold value
0 % ... 100 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
