8001442 Festo Pressure Sensors

Name: 8001442
Brand: Festo

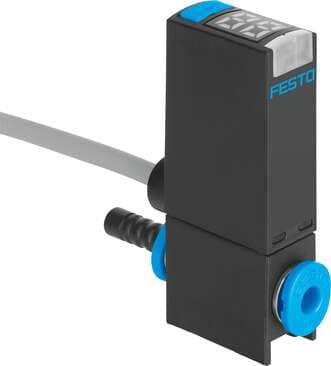

Festo 8001442 pressure sensor SPAE-V1R-Q3-PNLK-2.5K Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EMV, Materials note: Conforms to RoHS

Part#:8001442

Manufacturer:Festo

Alt. Part#:SPAE-V1R-Q3-PNLK-2.5K

Product Lifecycle:Active

Get a quick Quote!

pressure sensor SPAE-V1R-Q3-PNLK-2.5K Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EMV, Materials note: Conforms to RoHS

About the manufacturer: Festo is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8001442 Festo price in the box on the right side or send a quick quote.

Product Details

KC characters
KC EMC
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Method of measurement
Piezoresistive pressure sensor with display
Symbol
00995430
Note on materials
RoHS-compliant
Max. overload pressure
5 bar
Information on operating and pilot media
Operation with oil lubrication possible
Temperature co-efficient in ± %FS/K
0.05 %FS/K
Max. output current
100 mA
Protocol
IO-Link®
IO-Link®, process data width IN
2 Byte
Cable length
2.5 m
Sealing ring material
NBR
Switching status indication
LED yellow
Setting range threshold value
1 % ... 98 %
Measured variable
Relative pressure
Temperature of medium
0 °C ... 50 °C
Repetition accuracy in ± %FS
0.3 %FS
Display range start value
0 %FS
IO-Link®, profile
Smart sensor profile

IO-Link®, process data content IN

14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)

DC operating voltage range

18 V ... 30 V

Mounting position

Any

Product weight

40 g

Display type

LED display 2-digit

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Certification

RCM compliance mark c UL us - Recognized (OL)

Pressure measuring range initial value

0 bar

Ambient temperature

0 °C ... 50 °C

Switching output

PNP/NPN switchable

Display range end value

99 %FS

IO-Link®, function classes

Binary data channel (BDC) Teach channel

IO-Link®, process data width OUT

0 Byte

Reverse polarity protection

for all electrical connections

Pneumatic connection

QS-3

Setting options

IO-Link® Via display and pushbuttons

Type code

SPAE

Certificate issuing authority

UL E322346

Pressure measuring range end value

-1 bar

ADC resolution

10 bit

Switching function

Freely programmable

Short-circuit protection

yes

IO-Link®, communication mode

COM2 (38,4 kBd)

IO-Link®, port class

IO-Link®, minimum cycle time

3 ms

Electrical connection

3-wire Open end

Displayable unit(s)

%FS

Degree of protection

IP40

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Accuracy in ± % FS

1.5 %FS

Switching element function

N/C contact Switchable

IO-Link®, protocol version

Device V 1.1

IO-Link®, SIO mode support

Yes

IO-Link®, data memory required

500 byte

Type of mounting

With accessories

Housing material

PA-reinforced

Protection against tampering

PIN code

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
