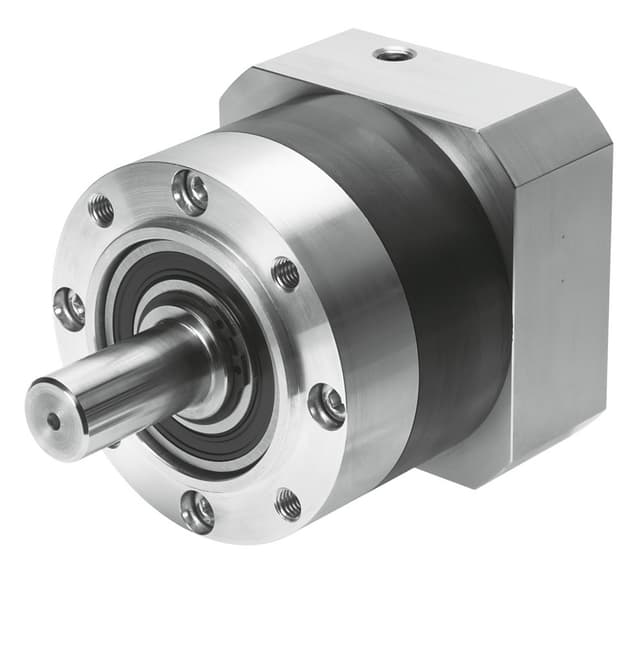

8000596 Festo Servo & Stepper Gearboxes

Name: 8000596
Brand: Festo

Festo 8000596 gear unit EMGC-40-P-G5-SEC-67 Gear unit flange size: 40 mm, Motor flange size: 67 mm, Torsional backlash: 0,5 deg, Type of gear unit: Planetary gear unit, Gear unit ratio: 5:1

Part#:8000596

Manufacturer:Festo

Alt. Part#:EMGC-40-P-G5-SEC-67

Product Lifecycle:Active

Get a quick Quote!

gear unit EMGC-40-P-G5-SEC-67 Gear unit flange size: 40 mm, Motor flange size: 67 mm, Torsional backlash: 0,5 deg, Type of gear unit: Planetary gear unit, Gear unit ratio: 5:1

About the manufacturer: Festo is one of the manufacturers that offers Servo & Stepper Gearboxes that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8000596 Festo price in the box on the right side or send a quick quote.

Product Details

Torsional backlash
0.5 deg
Gear ratio
5:1
Mass moment of inertia, gearbox
0.04 kgcm²
Interface code, motor out
40G
Gearbox flange size
40 mm
Gearbox type
Planetary gear
Gearbox operating temperature
-20 °C ... 90 °C
Degree of protection
IP54
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Max. actuator speed
6000 1/min
Torsional rigidity
0.85 Nm/arcmin
Interface code, motor in
67A
Motor flange size
67 mm
Type code
EMGC
Max. efficiency
94 %
Max. output torque
13 Nm
Continuous output torque
6.5 Nm
Product weight
450 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
