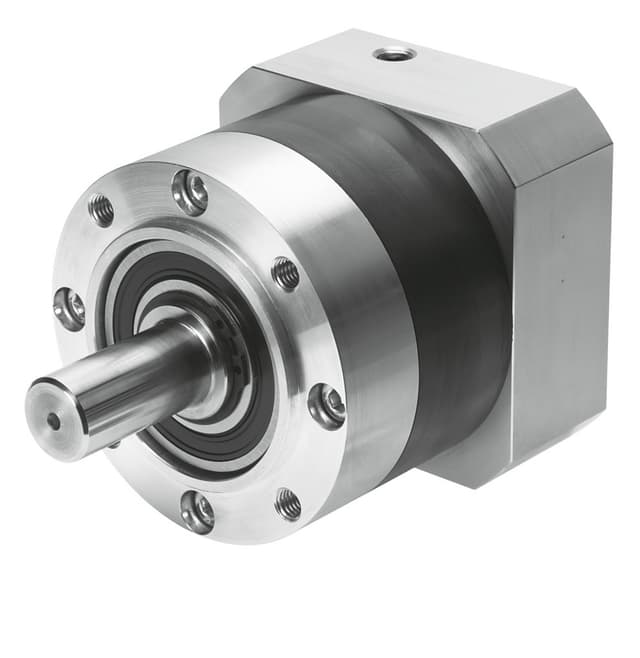

8000601 Festo Servo & Stepper Gearboxes

8000601 on Powermatic Associates
Festo

Part#:8000601

Alt. Part#:EMGC-40-P-G25-SEC-67

Manufacturer:Festo

Category:Servo & Stepper Gearboxes

Product Lifecycle:Active

Product description

gear unit EMGC-40-P-G25-SEC-67 Gear unit flange size: 40 mm, Motor flange size: 67 mm, Torsional backlash: 0,67 deg, Type of gear unit: Planetary gear unit, Gear unit ratio: 25:1

Product Details

  • Gearbox flange size
    40 mm
  • Max. actuator speed
    6000 1/min
  • Product weight
    550 g
  • Interface code, motor out
    40G
  • Torsional backlash
    0.67 deg
  • Gear ratio
    25:1
  • Max. efficiency
    92 %
  • Interface code, motor in
    67A
  • Gearbox type
    Planetary gear
  • Degree of protection
    IP54
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Type code
    EMGC
  • Gearbox operating temperature
    -20 °C ... 90 °C
  • Mass moment of inertia, gearbox
    0.04 kgcm²
  • Max. output torque
    17.5 Nm
  • Motor flange size
    67 mm
  • Continuous output torque
    14 Nm
  • Torsional rigidity
    0.85 Nm/arcmin

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
