8000107 Festo Pressure Sensors

8000107 on Powermatic Associates
Festo

Part#:8000107

Alt. Part#:SPTW-P50R-G14-A-M12

Manufacturer:Festo

Category:Pressure Sensors

Product Lifecycle:Active

Product description

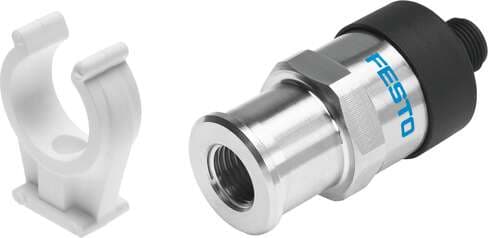

pressure transmitter SPTW-P50R-G14-A-M12 Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: (* Contains PWIS substances, * Conforms to RoHS), Measured variable: Relative

Product Details

  • Type code
    SPTW
  • Measured variable
    Relative pressure
  • DC operating voltage range
    8 V ... 30 V
  • Degree of protection
    IP67
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • Pressure measuring range initial value
    0 bar
  • Temperature of medium
    0 °C ... 80 °C
  • Linearity error in ± % FS
    0.5 %FS
  • Type of mounting
    Optionally: With accessories
  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • Symbol
    00991968
  • Method of measurement
    Metal thin-film pressure sensor
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Gaseous media
  • Analog output
    4 - 20 mA
  • Material of plug housing
    PA
  • Pneumatic connection
    G1/4
  • Materials in contact with the media
    High-alloy stainless steel
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Pressure measuring range end value
    50 bar
  • Ambient temperature
    0 °C ... 80 °C
  • Short-circuit protection
    yes
  • Electrical connection
    4-pin Round design
  • Product weight
    80 g
  • Housing material
    PA High-alloy stainless steel
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Max. overload pressure
    100 bar
  • Repetition accuracy in ± %FS
    0.1 %FS
  • Accuracy in ± % FS
    1 %FS
  • Reverse polarity protection
    for operating voltage
  • Mounting position
    Any

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
