6687 Festo Pneumatic Components

6687 on Powermatic Associates
Festo

Part#:6687

Alt. Part#:BMCH-3-3-1/8

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

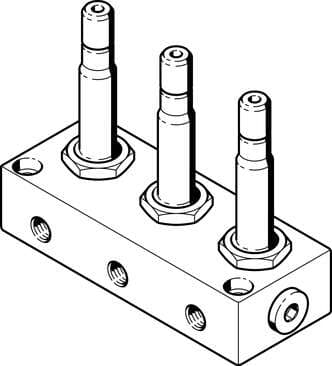

solenoid valve BMCH-3-3-1/8 Valve function: 3x3/2 closed, monostable, Type of actuation: electrical, Standard nominal flow rate: 160 l/min, Operating pressure: -0,95 - 7 bar, Design structure: Poppet valve with spring return

Product Details

  • Pneumatic working port
    G1/8
  • Certification
    c CSA us (OL)
  • Max. no. of valve positions
    3
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Type of mounting
    With through-hole
  • Pneumatic connection 3
    G1/8
  • Actuation type
    Electrical
  • Operating pressure
    -0.95 bar ... 7 bar
  • Nominal width
    2.5 mm
  • Symbol
    00995422
  • Pick-up power consumption
    30 W
  • Pneumatic connection 1
    G1/4
  • Reset method
    Mechanical spring
  • Sealing principle
    Soft
  • Type of control
    Direct
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight
    1010 g
  • Standard nominal flow rate
    160 l/min
  • Design
    Poppet valve with return spring
  • Type code
    BMCH
  • Degree of protection
    IP65
  • Suitability for vacuum
    yes
  • Holding power consumption
    22 W
  • Electrical connection
    Plug
  • Housing material
    Aluminum
  • Valve function
    3x3/2, closed, monostable
  • Ambient temperature
    -5 °C ... 40 °C
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G1/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

6687 Related Documents

6687 DataSheet.pdf
