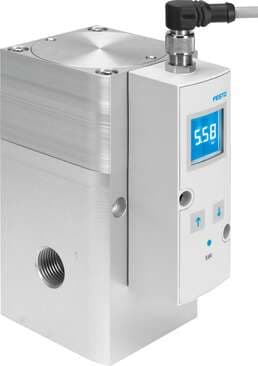

575239 Festo Proportional Valves

Product Details

• KC characters
  KC EMC
• Exhaust nominal width
  12 mm
• Safety instructions
  VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Type of control
  Pilot-controlled
• Pressure regulation range
  0.06 bar ... 6 bar
• DC operating voltage range
  21.6 V ... 26.4 V
• Residual ripple
  10 %
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Analog input signal range
  0 - 10 V
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Electrical connection
  8-pin Plug
• Type code
  VPPM
• Design
  Pilot-controlled diaphragm regulator
• Max. electrical power consumption
  12 W
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Repetition accuracy FS
  0.5 %
• Pneumatic connection 3
  G1/2
• Nominal width pressurization
  12 mm
• Sealing principle
  Soft
• Symbol
  00995303
Short-circuit protection
For all electrical connections
Display type
Back-lit LCD
Max. pressure hysteresis
0.03 bar
Duty cycle
100%
Information on operating and pilot media
Operation with oil lubrication not possible
Degree of protection
IP65
Product weight
2050 g
Type of mounting
Optionally: With accessories
Note on materials
RoHS-compliant
Mounting position
Any
Reverse polarity protection
for all electrical connections
Valve function
3-way proportional pressure control valve
Standard nominal flow rate
4500 l/min
Analog output signal range
0 - 10 V
Temperature of medium
10 °C ... 50 °C
Temperature coefficient
0.04 %/K
Pneumatic connection 2
G1/2
Actuation type
Electrical
Reset method
Mechanical spring
Inlet pressure 1
0 bar ... 8 bar
Max. current consumption
500 mA
Switching output
NPN
CE marking (see declaration of conformity)
As per EU EMC directive
Ambient temperature
0 °C ... 50 °C
Linearity error FS
1 %
Pneumatic connection 1
G1/2
Housing material
Wrought aluminum alloy Anodized
