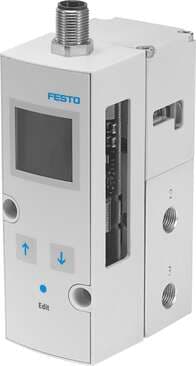

575121 Festo Proportional Valves

Product Details

• Nominal width pressurization
  6 mm
• Sealing principle
  Soft
• Type code
  VPPM
• Reverse polarity protection
  for all electrical connections
• Inlet pressure 1
  0 bar ... 8 bar
• Residual ripple
  10 %
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Degree of protection
  IP65
• Electrical connection
  8-pin Plug
• Exhaust nominal width
  4.5 mm
• Mounting position
  Any
• Symbol
  00995303
• Type of control
  Pilot-controlled
• Standard nominal flow rate
  900 l/min
• Max. current consumption
  300 mA
• Analog output signal range
  0 - 10 V
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Ambient temperature
  0 °C ... 50 °C
• Product weight
  400 g
• Housing material
  Wrought aluminum alloy Anodized
KC characters
KC EMC
Actuation type
Electrical
Design
Pilot-controlled diaphragm regulator
Display type
Back-lit LCD
Pressure regulation range
0.06 bar ... 6 bar
Analog input signal range
0 - 10 V
Certification
RCM compliance mark c UL us - Listed (OL)
Linearity error FS
1 %
Type of mounting
Optionally: With accessories
Safety instructions
VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Reset method
Mechanical spring
Max. pressure hysteresis
0.03 bar
Max. electrical power consumption
7 W
Information on operating and pilot media
Operation with oil lubrication not possible
Repetition accuracy FS
0.5 %
Pneumatic connection 2
G1/8
Short-circuit protection
For all electrical connections
Valve function
3-way proportional pressure control valve
DC operating voltage range
21.6 V ... 26.4 V
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Temperature of medium
10 °C ... 50 °C
Temperature coefficient
0.04 %/K
Pneumatic connection 1
G1/8
Pneumatic connection 3
G1/8
Note on materials
RoHS-compliant
