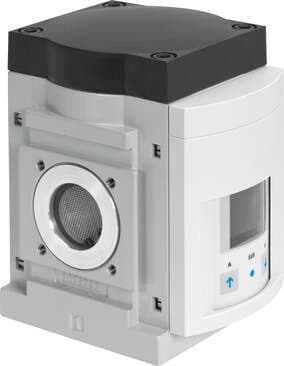

573347 Festo Flow Sensors

Product Details

• Nominal temperature
  23 °C
• Switching function
  Window comparator or threshold value comparator, adjustable
• Flow characteristic curve, start value
  0 l/min
• Min. load resistance of voltage output
  10 kOhm
• Type of mounting
  On service unit
• Housing material
  Die-cast aluminum PA-reinforced
• Displayable unit(s)
  l scfm
• Type code
  SFAM
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Measured variable
  Flow rate Consumption
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Nitrogen
• Temperature of medium
  0 °C ... 50 °C
• Switching output
  2x PNP or 2x NPN adjustable
• Flow characteristic curve, end value
  5000 l/min
• Electrical connection
  5-pin Plug, straight
• Degree of protection
  IP65
• KC characters
  KC EMC
• Note on materials
  RoHS-compliant
• Flow measuring range start value
  50 l/min
• Ambient temperature
  0 °C ... 50 °C
Repetition accuracy margin in ± %FS
0.8 %FS
Switching element function
N/C contact N/O contact
End value output characteristic curve
10 V
Mounting position
Horizontal
Product weight
1500 g
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Measuring principle
Thermal
Operating pressure
0 bar ... 16 bar
Accuracy of flow rate
± (3% o.m.v. + 0.3% FS)
Temperature co-efficient margin in ± %FS/K
typ. 0. 1%FS/K
Max. output current
100 mA
Output characteristic curve initial value
0 V
Reverse polarity protection
for all electrical connections
Pneumatic connection
Battery module
Display type
Illuminated LCD blue
Certification
RCM compliance mark c UL us - Recognized (OL)
Certificate issuing authority
UL E322346
Flow direction
Unidirectional From left to right
Flow measuring range end value
5000 l/min
Zero point repetition accuracy in ± %FS
0.2 %FS
Pressure influence of margin in ±%FS/bar
0.5 %FS/b.
Analog output
0 - 10 V
Short-circuit protection
yes
DC operating voltage range
15 V ... 30 V
Pressure drop
< 40 mbar
