566554 Festo Pneumatic Valves Accessories

566554 on Powermatic Associates
Festo

Part#:566554

Alt. Part#:VABM-L1-10AW-M7-10

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

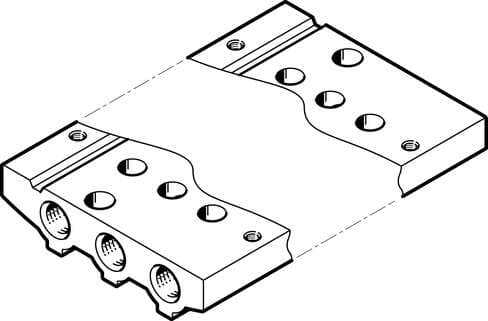

manifold rail VABM-L1-10AW-M7-10 Grid dimension: 10,5 mm, Max. number of valve positions: 16, Operating pressure: -0,9 - 10 bar, Authorisation: (* RCM Mark, * c CSA us (OL), * c UL us - Recognized (OL)), Corrosion resistance classification CRC: 2 - Modera

Product Details

  • Pneumatic connection 2
    M5
  • Pneumatic connection 4
    M5
  • Width dimension
    10.5 mm
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type code
    VABM
  • Certification
    RCM compliance mark c UL us - Recognized (OL)
  • Operating pressure
    -0.09 MPa ... 1 MPa
  • Max. tightening torque for H-rail mounting:
    1.5 Nm
  • Max. tightening torque for valve mounting
    0.45 Nm
  • Pneumatic connection 5
    M7
  • Max. no. of valve positions
    16
  • Pilot air port 12/14
    M5
  • Pneumatic connection 3
    M7
  • Product weight
    204 g
  • Pneumatic connection 1
    M7
  • Note on materials
    RoHS-compliant
  • Max. tightening torque for wall mounting
    1.5 Nm
  • Pilot exhaust air port 82/84
    M5
  • Manifold rail material
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
