561293 Festo Couplings

561293 on Powermatic Associates
Festo

Part#:561293

Alt. Part#:EAMD-25-22-6.35-10X12

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

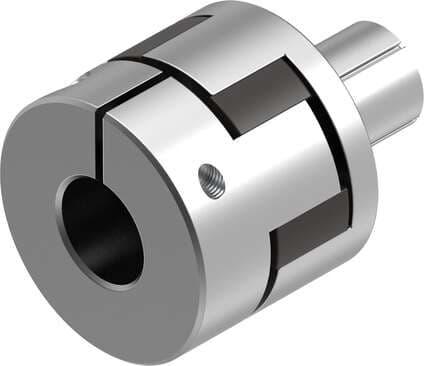

coupling EAMD-25-22-6.35-10X12 drive component, which transmits the rotary motion of a stepper or servo motor Holder diameter 1: 6,35 mm, Holder diameter 2: 10 mm, Size: 25, Nominal length: 22 mm, Assembly position: Any

Product Details

  • Type code
    EAMD
  • Mass moment of inertia
    3.2 kgmm²
  • Diameter of holder 2
    10 mm
  • Nominal length
    22 mm
  • Relative air humidity
    0 - 95 %
  • Transferable torque
    3.6 Nm
  • Size
    25
  • Ambient temperature
    -25 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Diameter of holder 1
    6.35 mm
  • Max. rotational speed
    8000 1/min
  • Mounting position
    Any
  • Storage temperature
    -25 °C ... 60 °C
  • Product weight
    43.7 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
