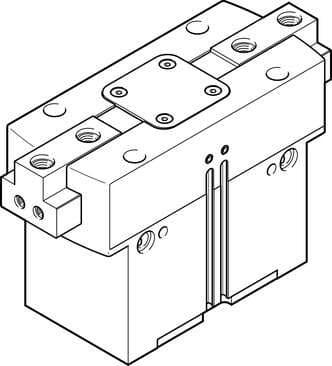

560230 Festo Pneumatic Grippers

Product Details

• Max. interchangeability
  ≤ 0.2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.05 mm
• Gripper function
  Parallel
• Mode of operation
  Double-acting
• Min. opening time at 6 bar
  294 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Degree of protection
  IP40
• Maximum torque on gripper jaw, Mz static
  140 Nm
• Sealing air pneumatic connection
  M5
• Stroke per gripper jaw
  16 mm
• Rotational symmetry
  ≤ 0.2 mm
• Mounting position
  Any
• Position sensing
  For proximity sensor
• Operating pressure
  4 bar ... 8 bar
• Min. closing time at 6 bar
  185 ms
• Mass moment of inertia
  93.034 kgcm²
• Maximum torque on gripper jaw, Mx static
  160 Nm
• Product weight
  3562 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Gripper jaw material
  Steel Hardened
Size
63
Max. gripper jaw angular play ax, ay
≤ 0.1 deg
Number of gripper jaws
2
Gripping force backup
During closing
Symbol
00991895
Operating pressure for sealing air
0 bar ... 0.5 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
5 °C ... 60 °C
Relubrication interval for guidance elements
5 MioCyc
Pneumatic connection
G1/8
Housing material
Aluminum Anodized
Max. gripper jaw backlash Sz
≤ 0.02 mm
Type code
HGPT
Design
Inclined plane Positively driven motion sequence
Max. operating frequency of pneumatic gripper
≤ 2 Hz
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Maximum force on gripper jaw Fz, static
5000 N
Maximum torque on gripper jaw, My static
180 Nm
Max. mass per external gripper finger
1260 g
Type of mounting
Optionally: With internal thread and dowel pin
Cover cap material
High-alloy stainless steel
